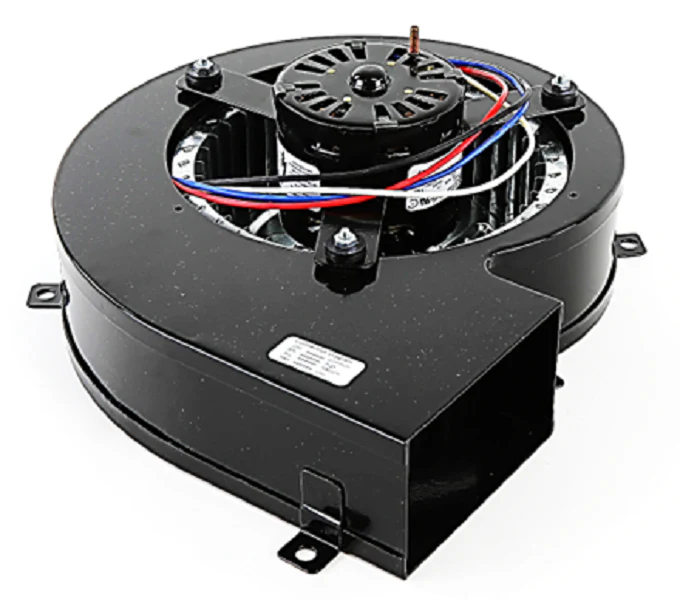

Fasco B47120 Blower Assembly
The Fasco B47120 Blower Assembly is a high-performance 115V 3-speed centrifugal blower engineered for demanding air movement applications in residential and light commercial heating systems. Drawing 1.95 to 2.0 amps, this 1/22 HP shaded pole motor delivers a robust 180 CFM at free air, making it a critical component for draft induction and heat distribution. Designed with a 3.3-inch diameter motor and sleeve bearings, the assembly supports CWSE rotation (Clockwise Shaft End) and is thermally protected to handle ambient temperatures up to 40°C. Contractors frequently utilize the B47120 as a direct OEM replacement blower for fireplace inserts, pellet stoves, and wood-burning units from brands like Appalachian Stove, Heatilator, and US Stove. Its 3-speed functionality allows for precise airflow modulation between 1500, 1100, and 830 RPM. This Fasco blower motor features a rectangular outlet measuring approximately 4-1/4" x 2-5/8" and is UL listed and CSA certified for reliable field integration into existing HVACR ductwork or appliance housings.
Key Benefits- Multi-Speed Versatility: Three distinct speed taps (High/Med/Low) allow technicians to tune airflow to specific heating requirements.
- Broad Compatibility: Serves as a primary cross-reference for Dayton 4C754, 7063-6207, and 1TDR2 models.
- Robust Thermal Protection: Integrated thermally protected motor prevents winding failure during continuous operation in high-heat environments.
- Standardized Fitment: Features a 7-1/8" x 2-1/8" blower wheel and 14-inch leads for straightforward electrical termination.
Is the B47120 compatible with external speed controllers?
No, this motor is not recommended for use with solid-state speed controllers. Speed adjustments should be made via the three dedicated factory speed taps (Black-Hi, Blue-Med, Red-Low) to prevent motor burnout.
Can this blower be used to replace a single-speed assembly?
Yes, provided the physical dimensions and 115V requirements match. You can simply wire the desired speed lead to the power source and cap the unused leads.
What stoves commonly use this specific Fasco assembly?
This unit is a frequent replacement for Harman Accentra, Pacific Energy, and Martin Industries stoves where a 180 CFM output is required.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
