Fasco A272 Motor

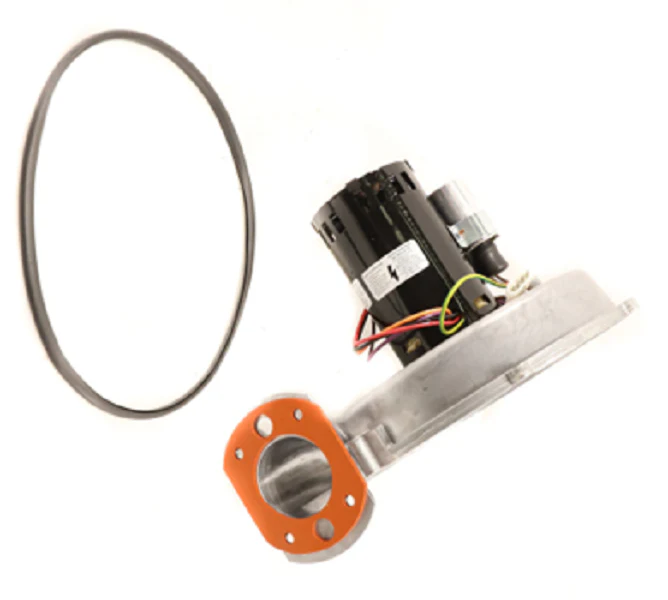

The Fasco A272 Motor is a high-performance draft inducer blower motor engineered for precision replacement in Trane furnace systems and other high-demand HVAC ventilation applications. Operating at 208-230V and delivering 1/12 HP at a rated speed of 3500 RPM, this 2-speed motor features a Permanent Split Capacitor (PSC) design that ensures consistent torque and operational efficiency. The thermally protected, open air-over design utilizes ball bearings for extended service life in high-temperature environments, specifically rated for up to 200°F inlet air. As a direct replacement for Trane 7062-3971 and X38040309-01, it includes a 6 MFD 440V capacitor and pre-installed gasket to maintain a secure air seal. The clockwise rotation (CWSE) and 3.3-inch diameter body meet exact OEM specifications, making it the standard choice for contractors requiring a reliable OEM replacement motor that eliminates field modifications and ensures proper pressure switch activation.
Key Benefits- OEM Compatibility: Drop-in replacement for Trane X38040309-01 and 7062-3971, reducing diagnostic time and installation errors.
- Dual-Speed Versatility: Supports 2-speed furnace operation to optimize airflow and fuel efficiency across varying heat cycles.
- Industrial-Grade Build: Features ball bearings and Class B insulation for reliable performance in high-static pressure applications.
- Complete Assembly: Comes equipped with the necessary 6 MFD capacitor and mounting gasket for immediate out-of-the-box installation.
Is the capacitor included with the A272 motor?
Yes, this PSC motor assembly includes the required 6 MFD / 440 VAC capacitor of the correct rating to ensure proper starting torque and efficiency.
What Trane part numbers does this motor specifically replace?
The Fasco A272 is the primary replacement for Trane 7062-3971, 7062-5783, 38040309, and KIT02590, maintaining original factory performance specifications.
Can this motor handle high-process air temperatures?
Yes, it is designed with a thermally protected housing and is rated to withstand maximum inlet air temperatures up to 200°F.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $610.16
-65%$610.16
$213.56Fasco A272 Motor
The Fasco A272 Motor is a high-performance draft inducer blower motor engineered for precision replacement in Trane furnace systems and other high-demand HVAC ventilation applications. Operating at 208-230V and delivering 1/12 HP at a rated speed of 3500 RPM, this 2-speed motor features a Permanent Split Capacitor (PSC) design that ensures consistent torque and operational efficiency. The thermally protected, open air-over design utilizes ball bearings for extended service life in high-temperature environments, specifically rated for up to 200°F inlet air. As a direct replacement for Trane 7062-3971 and X38040309-01, it includes a 6 MFD 440V capacitor and pre-installed gasket to maintain a secure air seal. The clockwise rotation (CWSE) and 3.3-inch diameter body meet exact OEM specifications, making it the standard choice for contractors requiring a reliable OEM replacement motor that eliminates field modifications and ensures proper pressure switch activation.
Key Benefits- OEM Compatibility: Drop-in replacement for Trane X38040309-01 and 7062-3971, reducing diagnostic time and installation errors.
- Dual-Speed Versatility: Supports 2-speed furnace operation to optimize airflow and fuel efficiency across varying heat cycles.
- Industrial-Grade Build: Features ball bearings and Class B insulation for reliable performance in high-static pressure applications.
- Complete Assembly: Comes equipped with the necessary 6 MFD capacitor and mounting gasket for immediate out-of-the-box installation.
Is the capacitor included with the A272 motor?
Yes, this PSC motor assembly includes the required 6 MFD / 440 VAC capacitor of the correct rating to ensure proper starting torque and efficiency.
What Trane part numbers does this motor specifically replace?
The Fasco A272 is the primary replacement for Trane 7062-3971, 7062-5783, 38040309, and KIT02590, maintaining original factory performance specifications.
Can this motor handle high-process air temperatures?
Yes, it is designed with a thermally protected housing and is rated to withstand maximum inlet air temperatures up to 200°F.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
