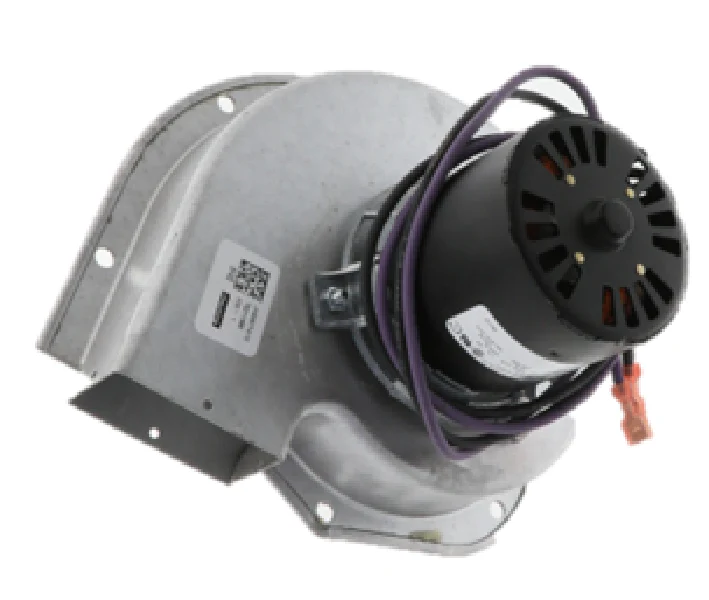

Fasco A223 Motor
The Fasco A223 Motor is an industry-standard draft inducer blower designed for direct OEM replacement in high-efficiency furnace systems, specifically compatible with York furnace models. This 1/30 HP unit operates on 208-230V at a rated 0.64 Amps, providing the reliable 3200 RPM single-speed performance required to maintain safe combustion air-flow. As a veteran-grade shaded pole motor, the A223 features a CW rotation (clockwise) and is built with Class B insulation to withstand internal flue gas temperatures while operating in a 40°C ambient environment. For contractors performing a furnace draft inducer replacement, this assembly includes the 3.3-inch diameter motor, housing, and blower wheel, ensuring an exact fit for cross-reference numbers 026-33999-001, 7021-9656, and 7021-10096. The 32-inch lead length with spade terminals allows for rapid integration into existing wire harnesses without field modification, maintaining the integrity of the HVAC exhaust system.
Key Benefits- Direct OEM Compatibility: Engineered as a drop-in replacement for specific York models, eliminating the need for mounting bracket modifications.
- High-Temperature Durability: Thermal overload protection and Class B insulation ensure the motor handles the corrosive and hot by-products of combustion.
- Precision Airflow: Maintains a consistent 3200 RPM to properly actuate the furnace pressure switch, preventing intermittent startup failures.
- Quiet Operation: The balanced forward-curved steel wheel reduces vibration and resonance through the heat exchanger.
What is the correct rotation for the A223?
This motor is configured for Clockwise (CW) rotation. Always verify the rotation pulse of the old inducer before installation to ensure compatibility with your specific blower housing geometry.
Can I use a 115V motor to replace this unit?
No. The Fasco A223 is a dedicated 208-230V motor. Installing a 115V motor in its place will result in immediate electrical failure. Always check the nameplate voltage on the existing inducer.
Are gaskets included with this assembly?
While the assembly is complete, it is recommended to apply a high-temperature silicone or new gasket material to the mounting flange to prevent CO leakage into the mechanical room.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
