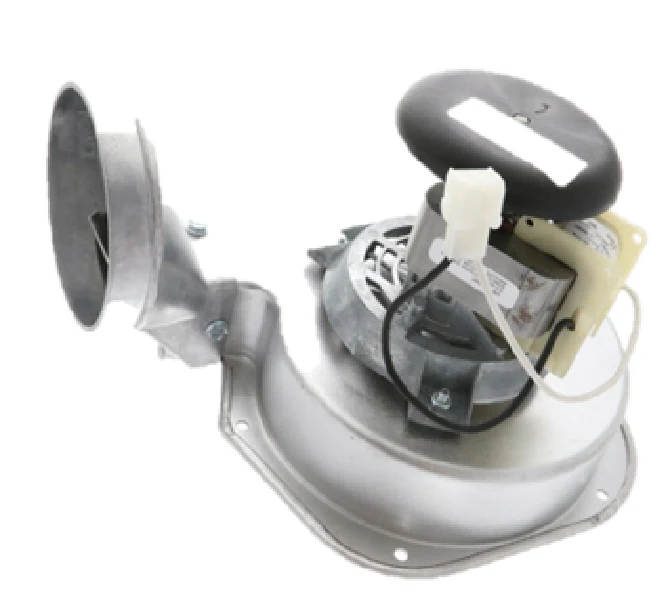

Fasco A198 Inducer
The Fasco A198 Inducer is a precision-engineered shaded pole replacement blower designed for specific high-efficiency furnace draft inducer applications. Operating at 115V with a 1/45 HP output, this unit delivers a consistent 3000 RPM to maintain optimal static pressure within the combustion chamber. The motor features a CW rotation (lead end) and uses a sleeve bearing system for reliable thermal performance in high-heat environments. As a direct drop-in for OEM 7021-9335 and Carrier 320725-753, it ensures proper venting of flue gases and prevents pressure switch tripping. Contractors should verify the flange pattern and terminal connections during installation to ensure a proper seal against the collector box, preventing CO leaks and ensuring optimal furnace cycling during peak demand.
Key Benefits for Technicians:- Direct OEM Interchange: Replaces Carrier 320725-753 and Fasco 7021-9335 without the need for mounting modifications.
- Optimized Performance: Rated at 1.5 Amps, providing the torque necessary to drive the internal cooling fan and centrifugal blower.
- Rugged Construction: Built with high-temperature insulation to withstand the thermal stresses of modern heat exchangers.
- Service Efficiency: Features a standardized lead length and plug configuration for faster job site turnaround.
What causes a draft inducer motor to fail prematurely?
Bearing wear or moisture buildup from condensing furnaces are typical culprits. If you hear grinding or see the pressure switch failing to close, check the wheel for debris before replacing the motor.
Is the Fasco A198 compatible with 208/230V systems?
No, this is a 115 volt furnace motor. Applying higher voltage will result in immediate winding failure and potential control board damage.
Does this unit include the blower wheel?
Yes, the Fasco A198 is a complete assembly, including the motor, housing, and balanced blower wheel for direct replacement.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $182.59
-65%$182.59
$63.91Fasco A198 Inducer
The Fasco A198 Inducer is a precision-engineered shaded pole replacement blower designed for specific high-efficiency furnace draft inducer applications. Operating at 115V with a 1/45 HP output, this unit delivers a consistent 3000 RPM to maintain optimal static pressure within the combustion chamber. The motor features a CW rotation (lead end) and uses a sleeve bearing system for reliable thermal performance in high-heat environments. As a direct drop-in for OEM 7021-9335 and Carrier 320725-753, it ensures proper venting of flue gases and prevents pressure switch tripping. Contractors should verify the flange pattern and terminal connections during installation to ensure a proper seal against the collector box, preventing CO leaks and ensuring optimal furnace cycling during peak demand.
Key Benefits for Technicians:- Direct OEM Interchange: Replaces Carrier 320725-753 and Fasco 7021-9335 without the need for mounting modifications.
- Optimized Performance: Rated at 1.5 Amps, providing the torque necessary to drive the internal cooling fan and centrifugal blower.
- Rugged Construction: Built with high-temperature insulation to withstand the thermal stresses of modern heat exchangers.
- Service Efficiency: Features a standardized lead length and plug configuration for faster job site turnaround.
What causes a draft inducer motor to fail prematurely?
Bearing wear or moisture buildup from condensing furnaces are typical culprits. If you hear grinding or see the pressure switch failing to close, check the wheel for debris before replacing the motor.
Is the Fasco A198 compatible with 208/230V systems?
No, this is a 115 volt furnace motor. Applying higher voltage will result in immediate winding failure and potential control board damage.
Does this unit include the blower wheel?
Yes, the Fasco A198 is a complete assembly, including the motor, housing, and balanced blower wheel for direct replacement.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Fasco A198 Inducer is a precision-engineered shaded pole replacement blower designed for specific high-efficiency furnace draft inducer applications. Operating at 115V with a 1/45 HP output, this unit delivers a consistent 3000 RPM to maintain optimal static pressure within the combustion chamber. The motor features a CW rotation (lead end) and uses a sleeve bearing system for reliable thermal performance in high-heat environments. As a direct drop-in for OEM 7021-9335 and Carrier 320725-753, it ensures proper venting of flue gases and prevents pressure switch tripping. Contractors should verify the flange pattern and terminal connections during installation to ensure a proper seal against the collector box, preventing CO leaks and ensuring optimal furnace cycling during peak demand.
Key Benefits for Technicians:- Direct OEM Interchange: Replaces Carrier 320725-753 and Fasco 7021-9335 without the need for mounting modifications.
- Optimized Performance: Rated at 1.5 Amps, providing the torque necessary to drive the internal cooling fan and centrifugal blower.
- Rugged Construction: Built with high-temperature insulation to withstand the thermal stresses of modern heat exchangers.
- Service Efficiency: Features a standardized lead length and plug configuration for faster job site turnaround.
What causes a draft inducer motor to fail prematurely?
Bearing wear or moisture buildup from condensing furnaces are typical culprits. If you hear grinding or see the pressure switch failing to close, check the wheel for debris before replacing the motor.
Is the Fasco A198 compatible with 208/230V systems?
No, this is a 115 volt furnace motor. Applying higher voltage will result in immediate winding failure and potential control board damage.
Does this unit include the blower wheel?
Yes, the Fasco A198 is a complete assembly, including the motor, housing, and balanced blower wheel for direct replacement.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
