Fasco A197 Motor
For veteran HVAC contractors, the Fasco A197 serves as a high-performance Trane replacement draft inducer motor, specifically engineered for variable-speed furnace applications. This variable speed draft inducer operates across a wide 33-100V range, delivering 1500-4700 RPM to maintain precise static pressure and combustion efficiency. Built as a 3-phase inducer motor with a 1/70 HP rating, the A197 offers a robust furnace exhaust motor solution that replaces OEM units like the 7092-0238S and D342097P01. The unit features ball-bearing construction for reduced friction and CW rotation (shaft end), ensuring reliable flue gas evacuation in high-efficiency systems. When swapping this HVAC venter motor, technicians should verify the 4-pin molded plug compatibility and lead length to ensure a seamless drop-in fit during emergency service calls.
Key Benefits for Contractors- Precise Speed Control: The 33-110V range supports variable-speed logic for optimal furnace airflow.
- Broad Compatibility: Direct cross-reference for Trane and American Standard models (7092-0238, X38010571010).
- Industrial Build: 3-phase polyphase design and ball bearings provide superior longevity over shaded-pole alternatives.
- Verified Performance: Thermally protected 1.0 Amp motor rated for 40°C ambient operation.
- Ready for Install: Includes 3.3-inch diameter motor frame and standard socket terminal leads.
What Trane part numbers does the Fasco A197 replace?
This motor is a direct replacement for Trane and American Standard numbers 7092-0238S, 7092-0274, D342097P01, and X38010571010.
Is this a 115V single-speed motor?
No, the A197 is a specialized 3-phase variable speed motor. It requires the specific voltage inputs (33-100V) provided by the furnace control board to modulate between 1500 and 4700 RPM.
Does this unit include the blower wheel or gasket?

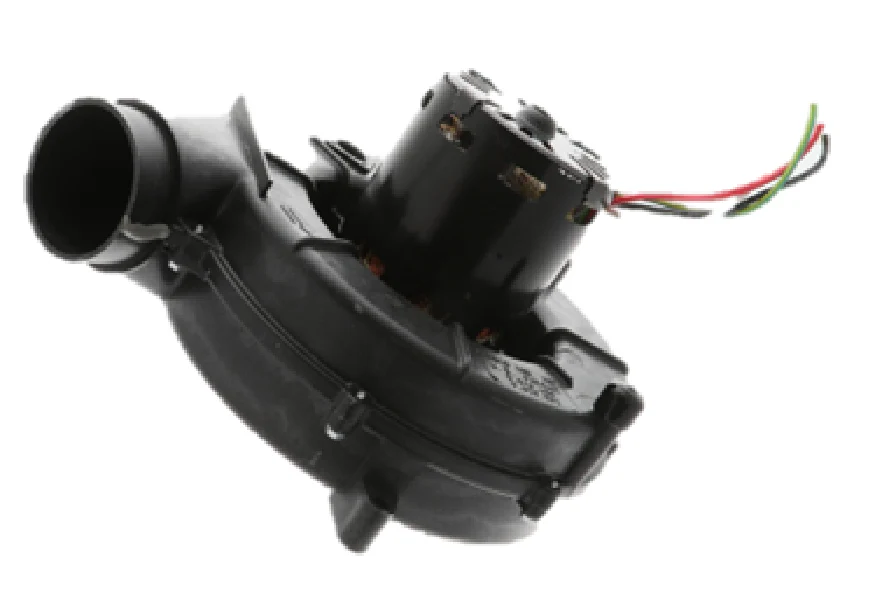

The A197 is the motor and housing assembly as pictured. Always inspect the existing wheel for damage and verify if a new mounting gasket is required for a gastight seal.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
