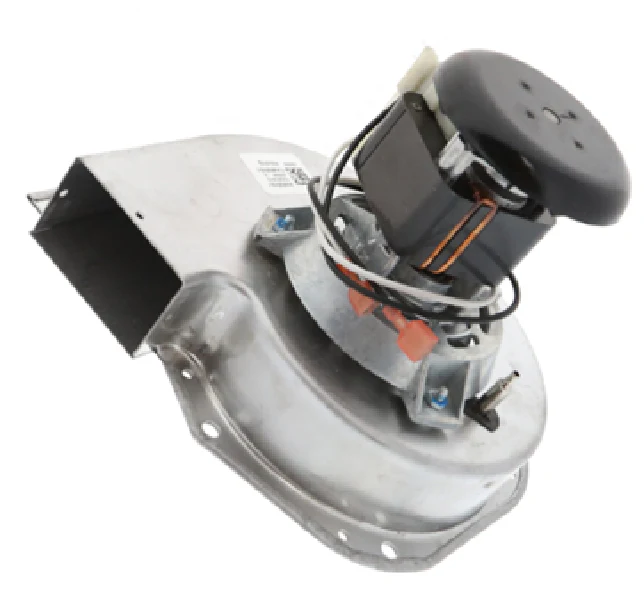

Fasco A181 Motor
The Fasco A181 Draft Inducer Motor is a high-performance shaded pole motor designed specifically as a direct furnace exhaust blower replacement for Goodman and other major HVAC brands. Operating at 115V with a 1.5 Amp draw, this single-speed unit delivers a consistent 3000 RPM (up to 3190 RPM under load) to ensure proper static pressure and flue gas venting through the heat exchanger. Built with ball bearings for extended service life in high-temperature environments, this 3.3-inch frame motor effectively manages combustion by-products to maintain safety and efficiency within the furnace cabinet.
For contractors in the field, the Fasco A181 provides a seamless mechanical fit for Goodman part numbers 7058-0136 and 20044403. This 1/30 HP assembly includes the blower wheel and housing, engineered to match the airflow requirements critical for correctly tripping pressure switches and preventing carbon monoxide buildup. When swapping this inducer assembly, professional technicians should always verify the rotation (CW shaft end) and flange alignment to ensure a leak-free seal against the collector box. Use this professional-grade component to restore system reliability without the compatibility risks associated with generic alternatives.
Key Benefits- Direct OEM Cross-Reference: Engineered to replace Goodman/Amana 7058-0136, 70580136, and 20044403 without modifications.
- Industrial Build Quality: Features ball bearings and a robust shaded pole design to withstand corrosive flue gases.
- High-Speed Venting: Operates at 3000 RPM to maintain the precise vacuum pressure required for modern high-efficiency furnaces.
- Standard 115V Configuration: Simplifies wiring with standard 115V 1-speed connectivity for rapid on-site replacement.
Does this unit include the cooling fan and gasket?
The Fasco A181 typically comes as a complete blower assembly. Techs are advised to inspect the original gasket and use RTV silicone rated for 400°F if a replacement seal is not pre-installed to prevent exhaust leaks.
Is the A181 compatible with other furnace brands?
While primarily a Goodman furnace inducer replacement (cross-referencing 200-44403), it may fit other brands like Amana and Janitrol. Always check the motor diameter, RPM, and mounting bolt pattern against the existing unit.
What are the symptoms of a failing inducer motor?
Common indicators include loud screeching (bearing failure), a humming noise without rotation, or the furnace failing to ignite because the pressure switch won't close due to insufficient RPM.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
