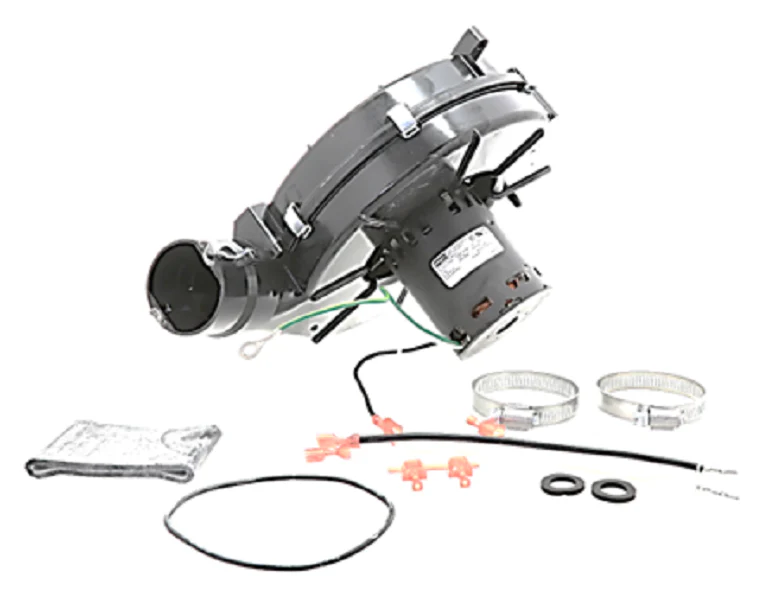

Fasco A170 Motor
For service calls involving Intercity Products (ICP) and Heil units, the Fasco A170 Motor is the standard 115V draft inducer for maintaining proper combustion airflow. This 1/25 HP shaded pole motor operates at 3400 RPM (often listed at 3200 RPM depending on the load) to provide the necessary static pressure for high-efficiency furnace heat exchangers. As a direct-fit A170 inducer motor replacement, this assembly features a durable 3.3-inch diameter frame and a CCW rotation (lead end) specifically engineered to handle high-temperature exhaust gases without premature bearing fatigue. Practitioners should note that this unit replaces multiple ICP 7021-10299 and 7021-10702 part numbers, ensuring it satisfies original blower performance curves for Heil, Tempstar, and Comfortmaker systems. The ball-bearing design offers increased longevity over standard sleeve bearings, particularly in furnace draft inducer applications where thermal protection and class B insulation are required to prevent motor burnout under continuous operation. When pulling the old assembly, verify the restrictor plate to ensure peak efficiency during the swap.
- Universal ICP Compatibility: Replaces critical part numbers including 1010526, 1011409, and 1164280 for seamless field installation.
- High-Speed Combustion Venting: Delivers 3400 RPM performance at 2.3 amps to clear flue gases and close pressure switches reliably.
- Rugged Construction: Utilizes ball bearings and a thermally protected motor housing to withstand the harsh conditions of a condensing furnace.
- Aftermarket Efficiency: Provides a cost-effective alternative to OEM blowers while maintaining exact physical mounting footprints.
Common Questions
Does this motor replace the ICP 7021-10299 model?
Yes, the Fasco A170 is the primary replacement for 7021-10299, 7021-10702, and several other Intercity Products draft inducers. Always verify the voltage and RPM on the existing nameplate before installation.
What should I check if the new inducer is making a high-pitched noise?
Ensure the blower wheel is not rubbing on the housing and that all mounting pins are secure. Check for any debris or loose chunks left in the collector box from the previous failure, as these can cause harmonic warbling.
Is the capacitor included with the A170?
The A170 is a shaded pole motor design and typically does not require an external run capacitor, unlike its PSC counterparts. Always inspect the wiring harness for compatibility with the existing furnace control board.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
