Fasco A168 Blower Motor

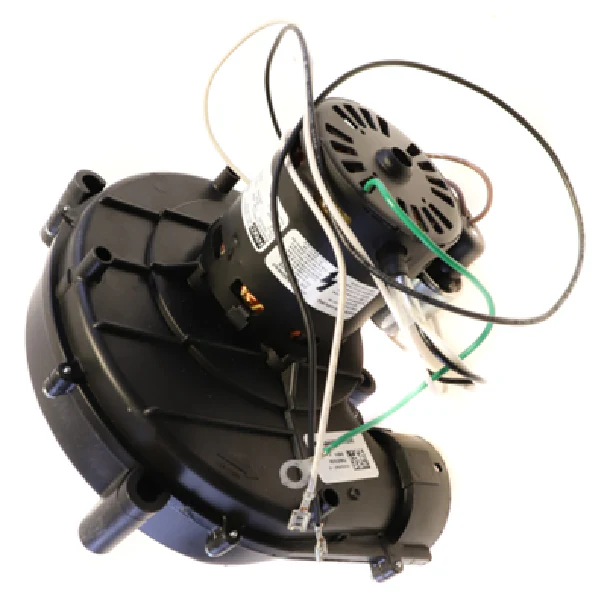

The Fasco A168 Blower Motor is a high-performance 115V draft inducer assembly specifically engineered as an OEM replacement for York, Ducane, and Excel furnace systems. As a veteran-grade centrifugal blower, this unit features a 1/20 HP Permanent Split Capacitor (PSC) motor, delivering a consistent 3450 RPM to ensure precise combustion air pressure in high-efficiency heating applications. The 3.3-inch diameter motor is thermally protected and utilizes ball bearings for extended service life in high-ambient environments. With a 0.7 Amp draw and a clockwise (CW) rotation as viewed from the shaft end, the A168 provides a reliable solution for technicians troubleshooting inducer failures. It directly replaces multiple industry part numbers, including York 7021-5838, 7021-7217, and Ducane 7062-5019. The assembly includes the necessary 4 MFD capacitor and features 43-inch leads with spade terminals for a streamlined field installation without the need for additional harness modifications.
Key Benefits
- Precision Compatibility: Direct-drop replacement for York 7021-9054 and Ducane 20000101, eliminating the need for mounting adjustments.
- Enhanced Durability: Equipped with dual ball bearings and Class B insulation to handle internal furnace temperatures up to 180°F.
- Integrated Components: Ships with the required 4MFD 370V capacitor included, saving time on the job site.
- Reliable Performance: 3450 RPM output ensures correct static pressure for safe furnace ignition and venting cycles.
Common Questions
What common furnace brands does the Fasco A168 replace?
This inducer is a standard replacement for many York, Ducane, and Excel furnace models. Always verify the cross-reference numbers like 7062-5592 or 7062-3136 on your existing housing before installation.
Does this assembly include the specialized mounting gasket?
Most Fasco A168 units are shipped as the motor and blower wheel assembly; technical best practice is to supply a new gasket or high-temp RTV silicone to maintain a gastight seal during the swap.
Is this a multi-speed motor?
No, the A168 is a dedicated 1-speed blower motor designed to run at full RPM to satisfy the pressure switch requirements during the furnace's pre-purge and run cycles.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
