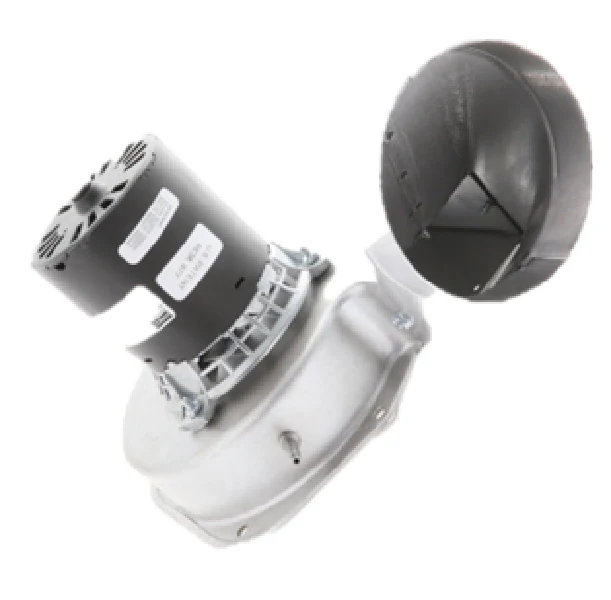

Fasco A155 Motor
The Fasco A155 is a high-performance centrifugal blower motor engineered for specific furnace models, serving as a direct replacement for ICP carrier intercity Heil 7021-8918 and 7021-10222 units. This shaded pole assembly operates at 115 volts and 3000 RPM, delivering the high-static pressure required for proper venting in 80% and 90% efficiency furnaces. Built with a 3.3-inch diameter motor and a single-speed 1.6-amp draw, it features a counter-clockwise (CCW) rotation relative to the shaft end. The blower housing is constructed for internal durability, utilizing sleeve bearings for quiet, long-term operation in high-heat environments. For field installation, the unit provides a drop-in fit with matching mounting brackets and electrical connectors, ensuring compatibility with furnace draft inducer systems. Maintaining correct airflow is critical for burner combustion and venting safety; the A155 inducer motor ensures the pressure switch is reliably triggered during the ignition sequence.
- Direct OEM Replacement: Matches specifications for ICP, Heil, Tempstar, and Comfortmaker furnace inducer assemblies.
- Internal Cooling: Built-in cooling fan maintains lower operating temperatures for the motor windings.
- Consistent Performance: 3000 RPM rating provides the necessary CFM to clear flue gases efficiently.
- Rugged Construction: Features a heavy-duty housing to prevent vibration and mechanical fatigue.
Common Questions
How do I verify if the Fasco A155 fits my furnace?
Confirm the 7021-8918 or 1010527 part number on your existing blower. Check that the rotation is CCW and the voltage is 115v, as these must match for proper draft assembly function.
Can I use this motor if my current unit has a different amp rating?
The A155 is rated at 1.6 amps. While small variations in amperage are common in replacements, the RPM and mounting configuration are the primary factors for compatibility in HVAC draft inducers.
Is the blower wheel included with this motor?
Yes, this is a complete furnace inducer assembly, which includes the motor, blower wheel, and the housing for immediate installation into the furnace cabinet.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
