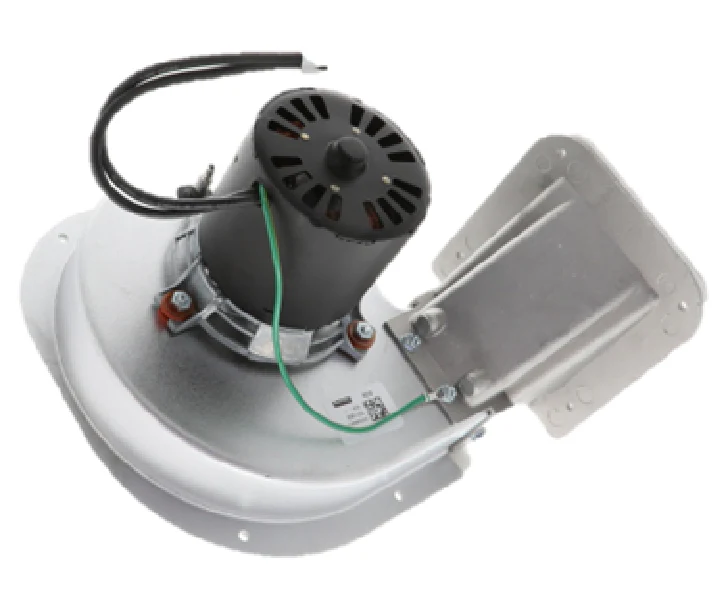

Fasco A154 Motor
The Fasco A154 Draft Inducer Motor is a precision-engineered centrifugal blower designed as a direct replacement for ICP furnace motors (parts 7021-9335, 7021-9599, and 1010526). Operating on a 115V 60Hz single-phase circuit, this 1/20 HP motor delivers a consistent 3300 RPM to maintain the static pressure required for safe combustion gas venting. The unit features ball bearing construction for reduced friction and extended thermal durability compared to sleeve bearing alternatives. With a 1.5 Amp draw and a single-speed configuration, it integrates seamlessly with existing furnace control boards. This shaded pole motor includes thermal protection to prevent windings from overheating during continuous cycles. It is commonly found in older Heil, Tempstar, and Comfortmaker units where consistent exhaust blower motor performance is critical for pressure switch engagement.
- Direct Fitment: Replaces specific 7021-9335 and 1010526 inducer assemblies without structural modifications.
- Industrial Build: Ball bearing design allows for multi-positional mounting and improved heat dissipation.
- Optimized Airflow: Precision-balanced blower wheel reduces vibration and ensures stable flue gas venting.
- Electrical Efficiency: Low 1.5 Amp draw minimizes electrical load on the primary HVAC transformer.
Common Installation Questions
Is the Fasco A154 compatible with all ICP furnaces?
This motor is a specific replacement for 115V single-speed ICP units. Always verify your part number against the cross-reference guide as high-efficiency furnaces may require two-speed or variable-speed assemblies.
How do I troubleshoot a failing draft inducer motor?
If the motor is buzzing but not spinning, check for debris in the wheel. If the unit is hot to the touch or fails to close the pressure switch despite spinning, the bearings or windings may have reached their thermal limit.
Does this motor include the gasket?
While the motor and blower housing are integrated, it is best practice to inspect the existing mounting seal. Ensuring a gastight connection is vital for preventing carbon monoxide leakage into the cabinet.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $324.27
-65%$324.27
$113.49Fasco A154 Motor
The Fasco A154 Draft Inducer Motor is a precision-engineered centrifugal blower designed as a direct replacement for ICP furnace motors (parts 7021-9335, 7021-9599, and 1010526). Operating on a 115V 60Hz single-phase circuit, this 1/20 HP motor delivers a consistent 3300 RPM to maintain the static pressure required for safe combustion gas venting. The unit features ball bearing construction for reduced friction and extended thermal durability compared to sleeve bearing alternatives. With a 1.5 Amp draw and a single-speed configuration, it integrates seamlessly with existing furnace control boards. This shaded pole motor includes thermal protection to prevent windings from overheating during continuous cycles. It is commonly found in older Heil, Tempstar, and Comfortmaker units where consistent exhaust blower motor performance is critical for pressure switch engagement.
- Direct Fitment: Replaces specific 7021-9335 and 1010526 inducer assemblies without structural modifications.
- Industrial Build: Ball bearing design allows for multi-positional mounting and improved heat dissipation.
- Optimized Airflow: Precision-balanced blower wheel reduces vibration and ensures stable flue gas venting.
- Electrical Efficiency: Low 1.5 Amp draw minimizes electrical load on the primary HVAC transformer.
Common Installation Questions
Is the Fasco A154 compatible with all ICP furnaces?
This motor is a specific replacement for 115V single-speed ICP units. Always verify your part number against the cross-reference guide as high-efficiency furnaces may require two-speed or variable-speed assemblies.
How do I troubleshoot a failing draft inducer motor?
If the motor is buzzing but not spinning, check for debris in the wheel. If the unit is hot to the touch or fails to close the pressure switch despite spinning, the bearings or windings may have reached their thermal limit.
Does this motor include the gasket?
While the motor and blower housing are integrated, it is best practice to inspect the existing mounting seal. Ensuring a gastight connection is vital for preventing carbon monoxide leakage into the cabinet.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
