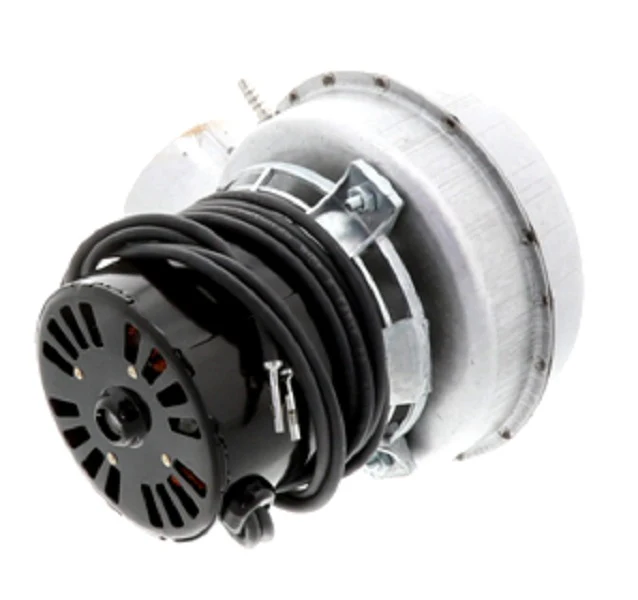

Fasco A135 Inducer Motor
The Fasco A135 is a high-performance shaded pole draft inducer motor specifically engineered as a direct replacement for Lennox furnace assemblies. Operating at 120 Volts and 3000 RPM, this 1/60 HP motor provides precise flue gas ventilation to ensure proper static pressure for furnace ignition. It features a 1-speed configuration with a 0.7 Amp rating, optimized for consistent airflow between 70 and 100 CFM. Designed with a 3.3-inch frame and sleeve bearings, the A135 utilizes a counter-clockwise shaft end (CCWSE) rotation to match the original equipment manufacturer’s specifications. The motor is thermally protected and includes Class B insulation to withstand the high ambient temperatures common in furnace vestibules. For simplified installation, it comes pre-wired with 48-inch leads and socket terminals, fitting Lennox 7021-8812 and 7021-8819 models without the need for mounting modifications.
Technical Specifications:
- Motor Type: Shaded Pole
- Horsepower: 1/60 HP
- Voltage: 120V / 60Hz
- RPM: 3000 (1-Speed)
- Amperage: 0.7 Amps
- Rotation: CCWSE (Counter-Clockwise Shaft End)
- Outlet: Round (No Flange)
Key Benefits for HVAC Professionals:
- Direct OEM Compatibility: Drops into Lennox systems using part numbers 7021-8812, 7021-8819, 7021-9409, and 33J4101 without housing adjustments.
- Enhanced Durability: Features an open air-over (OAO) enclosure and Class B insulation rated for environments up to 40°C.
- Plug-and-Play Wiring: Equipped with 48-inch leads and socket terminals for fast connection to the control board.
- System Safety: Restores factory-spec airflow to satisfy pressure switch settings and prevent lockout codes.
Common Questions:
Does this motor replace Lennox part number 7021-8812?
Yes, the Fasco A135 is the primary aftermarket replacement for Lennox 7021-8812 and 7021-8819 draft inducers.
What is the rotation direction for this assembly?
This motor is CCW (Counter-Clockwise) when viewed from the lead/shaft end, which is the standard configuration for compatible Lennox draft inducer housings.
Are special tools required for the lead connections?
No, this unit is pre-wired with socket terminals to match the existing Lennox wiring harness, facilitating a professional-grade installation in minutes.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
