Fasco A131 Motor

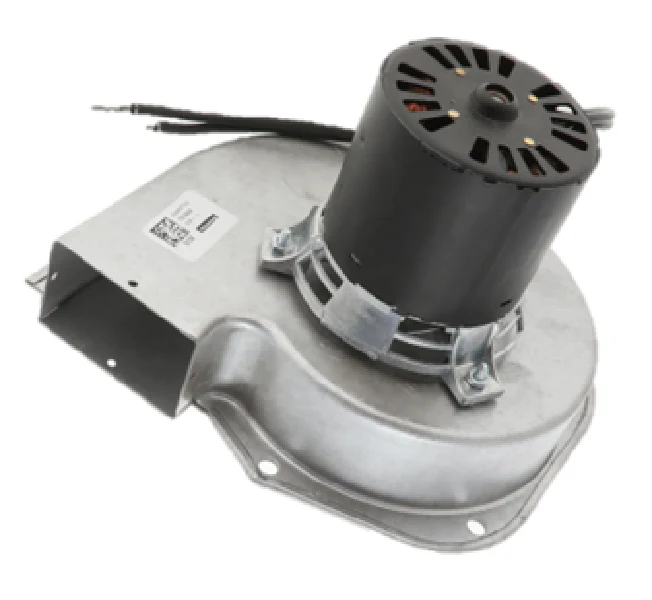

The Fasco A131 Motor is a high-performance draft inducer blower assembly designed as a direct drop-in replacement for specific ICP, Heil, and Tempstar 7021-9125 furnace units. Operating at 115 volts and 3450 RPM, this single-speed, shaded pole motor features a ball bearing system for reduced friction and extended component life in high-heat environments. As a critical safety component, it ensures proper combustion by drawing flue gases through the heat exchanger and exhausting them safely. This centrifugal blower assembly includes the housing and wheel, pre-aligned to eliminate vibration and ensure static pressure integrity during the ignition sequence. For HVAC contractors, the A131 replacement motor provides a reliable solution for restoring furnace cycles when the pressure switch fails to close due to inducer motor burnout or flue gas restriction. Ensure all electrical connections and gaskets are secured to maintain system efficiency and prevent carbon monoxide leakage.
Key Benefits:
- Direct OEM Compatibility: Replaces ICP 1010526, 1010312, and Rotom FB-RFB131 without requiring bracket modifications.
- High-Temperature Durability: Engineered with Class B insulation to withstand continuous thermal cycles within the furnace cabinet.
- Precision Balanced: The factory-installed impeller wheel minimizes mechanical noise and prevents premature bearing failure.
- Simplified Installation: Features a standard two-wire lead configuration for fast integration into existing furnace control boards.
Common Questions:
Will the Fasco A131 solve a "Pressure Switch Stuck Open" error?
If your multimeter confirms the motor isn't drawing rated amps or the shaft is seized, replacing the inducer assembly typically resolves the pressure differential issues that keep the switch from closing.
Can I replace just the motor or do I need the full A131 assembly?
The Fasco A131 is sold as a complete assembly. Replacing the entire unit is recommended to ensure the blower wheel is perfectly balanced with the new motor, preventing harmonic resonance issues.
Does this motor require external lubrication?
No, this unit features permanently lubricated ball bearings, making it a maintenance-free HVAC replacement part for the duration of its operational life.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $191.65
-65%$191.65
$67.08Fasco A131 Motor
