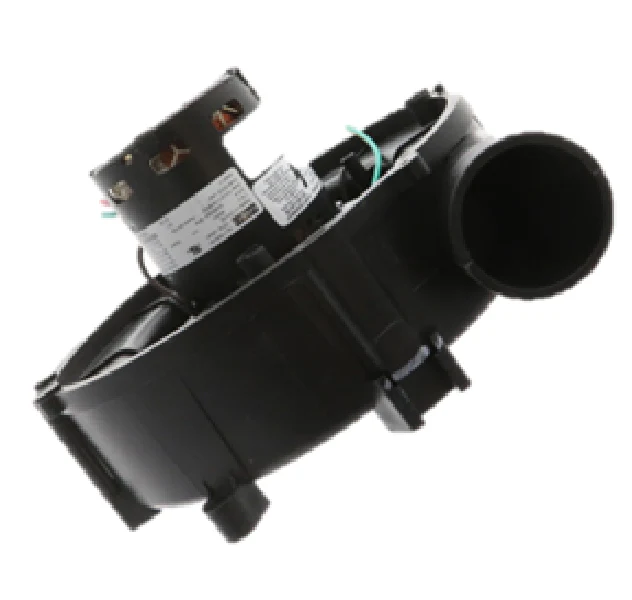

Fasco A076 Inducer
The Fasco A076 is a precision-engineered OEM replacement motor designed for high-efficiency Goodman furnace draft inducer applications. Featuring a two-stage design, this performance-driven inducer blower motor operates at 3200 and 2000 RPM, providing the exact torque and airflow required for both high and low-fire cycles. Built on a 3.3-inch frame, this 115V PSC motor utilizes ball bearings for extended service life and includes thermal protection to prevent winding failure during heavy duty cycles. This centrifugal draft inducer is the direct substitute for several critical industry part numbers, ensuring a drop-in fit without the need for field modifications. When you are on a service call and need to restore secondary heat exchanger venting, the Fasco A076 provides the CCWSE rotation and 0.50 amp draw required to meet manufacturer pressure switch specifications. This assembly includes the 16-inch leads and specialized pin terminal housing common to modern 90+ percent AFUE furnaces.
Key Benefits
- Dual-Speed Logic: Specifically designed for 2-stage heating systems with 3200/2000 RPM operation to maintain correct vent static pressure.
- Rugged Build: Equipped with industrial-grade ball bearings and an Auto-Reset Motor Overload Protector for maximum uptime in high-heat environments.
- Direct Cross-Reference: Replaces Goodman 0271F00119, 0271F00119S, 0171M00002, and Fasco 70626201 or 70626420.
- Broad Compatibility: Engineered for use in residential furnaces, boilers, and water heaters requiring a reliable 115V draft inducer.
- Installation Ready: Features a permanent split capacitor (PSC) design and 16-inch leads for efficient integration into existing wiring harnesses.
Common Questions
What are the signs of a failing Fasco A076 inducer?
Technicians typically look for pressure switch trip codes, excessive harmonic vibration, or grinding noises from the ball bearings. If the furnace fails to initiate the ignition sequence, check for 115V at the inducer leads to verify if the motor or the control board is the point of failure.
Does this motor include the capacitor?
Yes, as a Permanent Split Capacitor (PSC) motor, the Fasco A076 is designed for high-efficiency operation and typically includes or requires a specific 5 MFD 370 VAC capacitor for peak performance.
Can I use this for a single-stage Goodman furnace?
This motor is specifically a 2-speed inducer. While it technically can be used if the specs match, it is optimized for two-stage furnace control boards that toggle between the high and low-speed windings to manage combustion efficiency.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
