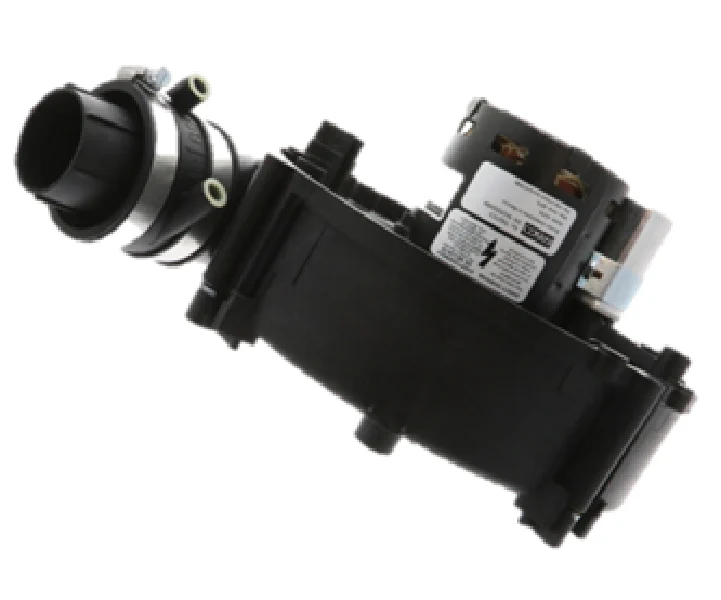

Fasco A074 Inducer
The Fasco A074 Inducer is a precision-engineered OEM replacement draft inducer blower designed specifically for Rheem-Ruud furnace applications. As a veteran-grade 2-speed 115V inducer, this unit features a 3.3-inch diameter motor operating at 3300 RPM on high speed and 2500 RPM on low speed. The PSC (Permanent Split Capacitor) design incorporates a dual ball bearing system and an internal 6 MFD-370 VAC capacitor to ensure structural integrity during high-thermal cycles. With a 0.50 Amp draw and 60Hz frequency, it provides the exact static pressure required for safe combustion gas venting. This centrifugal blower facilitates a clockwise rotation (CWSE) and includes a round outlet configuration with 8-inch leads and a pin terminal housing for direct harness integration. When replacing a failed 70-104157-03 or 70626337, professionals should verify the 3.3 frame size and two-stage operation to maintain system efficiency and pressure switch synchronization without requiring field modifications.
Key Benefits:- Application Compatibility: Direct drop-in replacement for Rheem and Ruud part numbers 70-104157-03, 70626337, and 7062-6337.
- Two-Stage Performance: Optimized for high-efficiency furnaces requiring varying 3300/2500 RPM airflow speeds.
- Reliable Construction: Features a robust ball bearing motor and Open Air Over (OAO) enclosure for superior heat dissipation.
- Simplified Installation: 8-inch lead wires with a pre-installed pin terminal housing allow for rapid electrical connection.
- Precision Balancing: Factory-level dynamic balancing of the blower wheel reduces vibration and operational noise.
Does this unit include the mounting gasket?
No, the Fasco A074 does not ship with a mounting gasket. It is recommended to use high-temperature RTV silicone or a new specialized gasket to ensure a gas-tight seal at the collector box.
Can this motor be used in a single-stage furnace?
While the A074 is a 2stg inducer, it must be paired with a control board capable of dual-speed output. Always verify that your furnace's induced draft motor specifications match the 115V and 0.50 Amp rating before installation.
What is the orientation of the rotation?
The rotational direction is Clockwise Viewing Shaft End (CWSE). Ensure this matches your existing assembly's airflow pattern to prevent back-pressure issues.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
