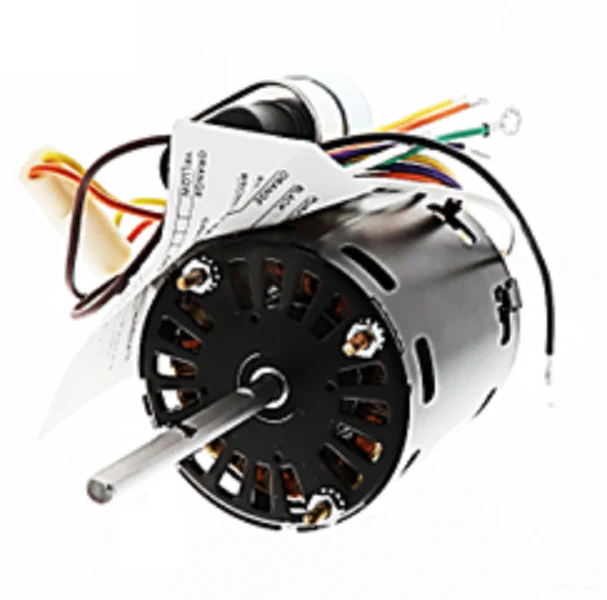

Fasco 9721 Motor
The Fasco 9721 is a versatile 1/12 HP condenser fan motor engineered for demanding HVACR applications requiring a 3.3-inch diameter frame. This unit features a dual-voltage configuration, operating efficiently at 115V or 208-230V, and is designed for a fixed 1550 RPM output. Built with TEAO (Totally Enclosed Air Over) construction and sealed ball bearings, it ensures reliable performance in high-moisture or debris-heavy environments. The motor utilizes Class B insulation and is thermally protected to handle consistent thermal cycling. With its reversible rotation capability and Shaded Pole design, this direct drive motor serves as a drop-in replacement for numerous OEM fan assemblies. Its extra-long shaft and extended thru-bolts allow for flexible mounting across various bracket configurations, making it a staple for contractors maintaining older refrigeration and air conditioning units.
Key Benefits for Technicians- Dual Voltage Versatility: Simplified inventory management with 115V and 208-230V compatibility in a single replacement motor.
- Enhanced Durability: Sealed ball bearings provide superior longevity compared to sleeve bearings, especially in vertical-shaft-down applications.
- Field Reversibility: Easy rotation changes ensure compatibility with both CW and CCW blower wheels and fan blades.
- Multi-Mount Configuration: Features extended thru-bolts and a 3.3-inch frame size for seamless integration into HVAC blower assemblies.
- TEAO Housing: Protects internal windings from environmental contaminants, extending the service life of the fan motor.
Is the Fasco 9721 compatible with variable speed controllers?
This is a single-speed shaded pole motor and is designed for constant-speed operation. It is not recommended for use with solid-state speed controllers unless specified by the system manufacturer.
Does this motor include the necessary capacitor?
As a shaded pole motor, the 9721 does not require a run capacitor for operation, simplifying the wiring process during field installation.
What are the physical shaft dimensions for fitment?
The motor features a standard 5/16-inch diameter shaft with a flat, extending approximately 3 inches, which can be trimmed to fit specific condenser fan depths.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
