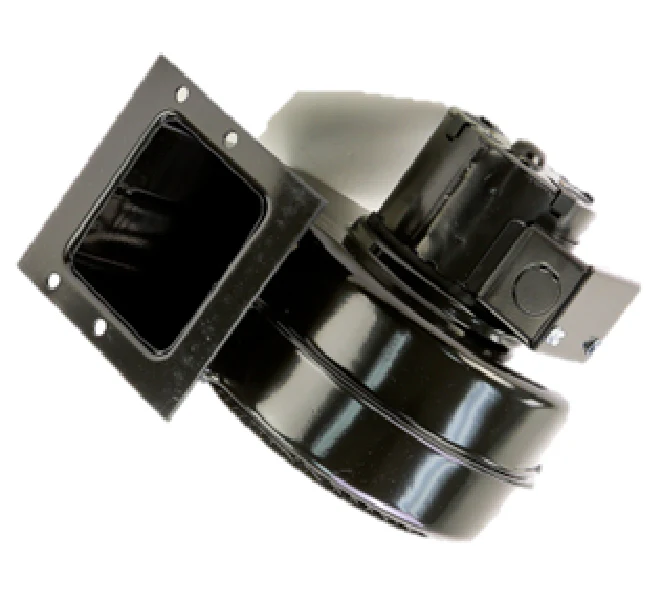

Fasco 50755-D500 Inducer Assembly
The Fasco 50755-D500 Inducer Assembly is a high-performance centrifugal blower designed for reliable draft induction in residential and light commercial HVAC systems. This shaded pole motor operates at 115 Volts and 60 Hz, delivering a consistent 160 CFM of airflow at 1500 RPM. Built with a 3.3-inch diameter motor and a durable sleeve bearing system, the 50755-D500 is engineered for continuous duty in demanding environments. It features thermally protected internal windings and Class B insulation rated for 40°C ambient temperatures, preventing premature failure during high-heat cycles. This draft inducer assembly serves as a direct Fasco replacement blower for numerous wood and pellet stove applications, as well as specific furnace models, ensuring proper combustion and safe exhaust of flue gases. The unit includes a rectangular outlet with a pre-installed mounting flange and 7-inch stripped leads, facilitating a straightforward HVAC inducer motor installation for field technicians.
Key Benefits:
- Broad Compatibility: Serves as a versatile Fasco 50755-D500 cross reference for brands including Arrow Heating, Country Flame, Earth Stove, and even some Trane or Carrier configurations.
- Optimized Combustion: Provides the necessary 1600 RPM draft to clear heat exchangers and satisfy pressure switches, preventing system lockout.
- Durable Construction: Features an open air over (OAO) enclosure and high-grade sleeve bearings for quiet, long-term operation.
- Plug-and-Play Integration: The 115V inducer assembly comes with a standard rectangular flange, reducing vacuum leak risks and installation time.
Common Questions:
What are the signs of a failing draft inducer?
Contractors typically look for abnormal harmonic "warbling" or grinding noises, which suggest worn sleeve bearings. If the motor is thermally protected and cutting out, check for a seized blower wheel or restricted venting causing high amperage draws.
Will this motor work with a speed controller?
As a shaded pole centrifugal blower, the 50755-D500 is generally not recommended for use with solid-state speed controls, as this can lead to motor humming and overheating. It is designed for single-speed operation at 1.0 Amps.
Does it include the mounting gasket?
While the assembly includes the metal flange, veterans recommend using a high-temperature silicone or a specific Fasco blower gasket to ensure a 100% airtight seal against the collector box.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
