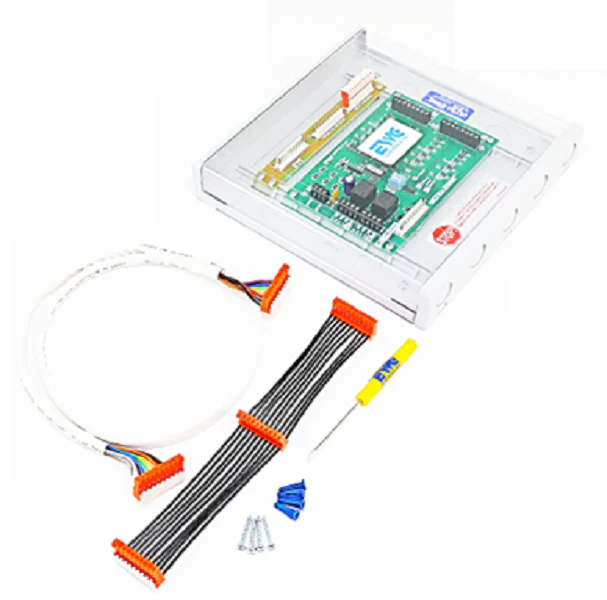

EWC Controls ZXM-2 Expansion Panel
The EWC Controls ZXM-2 is a dedicated two-zone expansion module engineered specifically for use with the Ultrazone UZC-4 control system. This HVAC zone expansion panel allows contractors to scale commercial or residential zoning systems from the base four zones up to a maximum of 22 zones by daisy-chaining multiple units using standardized RJ-45 patch cables. Each ZXM-2 expansion board provides independent control for two additional zones, featuring heavy-duty 10VA terminal blocks for reliable damper motor operation. The panel supports a variety of system configurations, including heat pump and dual fuel applications, while maintaining seamless communication with the master UZC-4 logic board. Built for durability in demanding mechanical rooms, the ZXM-2 eliminates the need for complex field wiring between expansion modules, ensuring consistent forced air zone control and simplified troubleshooting for service technicians and installers.
- Scalable Architecture: Easily increases zone capacity of UZC series controllers using plug-and-play system expansion ports.
- Universal Damper Compatibility: Terminal outputs support 2-wire, 3-wire, and spring-return dampers for maximum field flexibility.
- LED Diagnostics: Integrated status indicators for each zone verify thermostat calls and damper positions at a glance.
- Simplified Installation: Uses modular connections to reduce wiring labor and potential polarity errors in multi-zone HVAC setups.
How do I address a blinking LED on the ZXM-2 expansion panel?
A flashing light typically indicates a communication loss with the UZC-4 master controller or a short circuit in the 24V damper actuator wiring. Verify the integrity of the modular patch cable and check for excessive current draw on the individual zone terminals.
Can I use the ZXM-2 as a standalone zone controller?
No, the ZXM-2 expansion module must be linked to a UZC-4 main control board to function. It lacks the onboard logic processor required to manage system staging and HVAC equipment calls independently.
What is the maximum number of ZXM-2 panels I can add to a single UZC system?
You can bridge up to nine ZXM-2 boards to a single master unit, enabling control for up to 22 distinct HVAC zones, provided you have sufficient VA transformer capacity to power the additional dampers and logic circuits.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
