EWC Controls XM-2 Panel

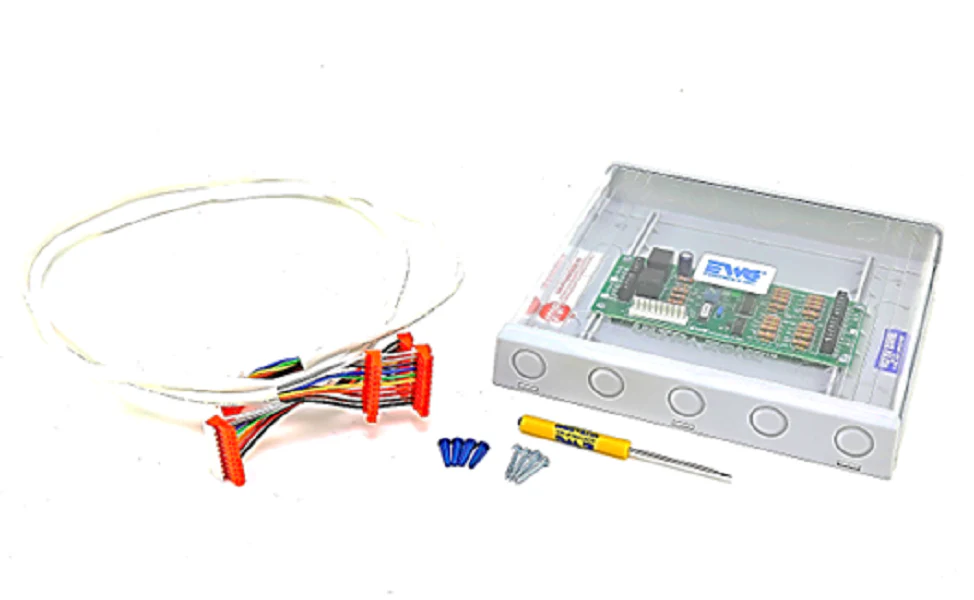

As a veteran tech, you know that job site efficiency depends on reliable hardware that integrates without a headache. The EWC controls XM-2 expansion panel is the professional choice for scaling a BMPlus 3000 series or BMPlus 5000 series control system. This module provides a seamless path to add 2 additional zones to your existing setup, allowing a total expansion of up to 7 zones when using two modules. Designed specifically for the HVAC zoning system, it includes a dedicated 10-pin "plug-and-play" cable to tether directly to the main BMPLUS expansion header, eliminating complex point-to-point wiring between boards.
The XM-2 expansion module is engineered for versatile zone control board applications, supporting standard 24VAC 2-wire or 3-wire motorized dampers. It is compatible with off-the-shelf heat/cool thermostats and 2-heat/1-cool heat pump thermostats. For the contractor in the field, the onboard LED diagnostics are a critical feature, providing a steady "heartbeat" status and clear visual confirmation of which dampers are currently energized. This rugged 2 zone expansion panel is built to handle the rigors of mechanical rooms with an operating range from -20° to 160°F.
Key Benefits
- Effortless Scaling: Easily expand a 3-zone BMPlus 3000 to 5 or even 7 zones using the included ribbon cable.
- Universal Compatibility: Works with most standard 24V thermostats and EWC models URD, ND, RSD, and SID.
- Diagnostic LEDs: Immediate visual feedback on microprocessor status and individual zone damper positions.
- Simple Integration: No separate transformer is required for the logic; it pulls power directly from the main panel bus.
- Contractor Grade: Solid 18-gauge copper wire terminals ensure secure, long-term connections.
Common Questions
Can the XM-2 be used as a standalone zone controller?
No, this is strictly an expansion module. It requires a BMPlus 3000 or 5000 series master control panel to function.
Is the XM-2 compatible with older BM2000 or BMPlus 2000 systems?
No, this module is not backward compatible with the older 2000 series legacy panels; it is designed for the 3000 and 5000 series firmware.
Do I need to power the dampers separately?
While the module logic is powered via the bus cable, damper motor power should be verified against the total VA rating of the main transformer to ensure adequate current for all connected zones.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
