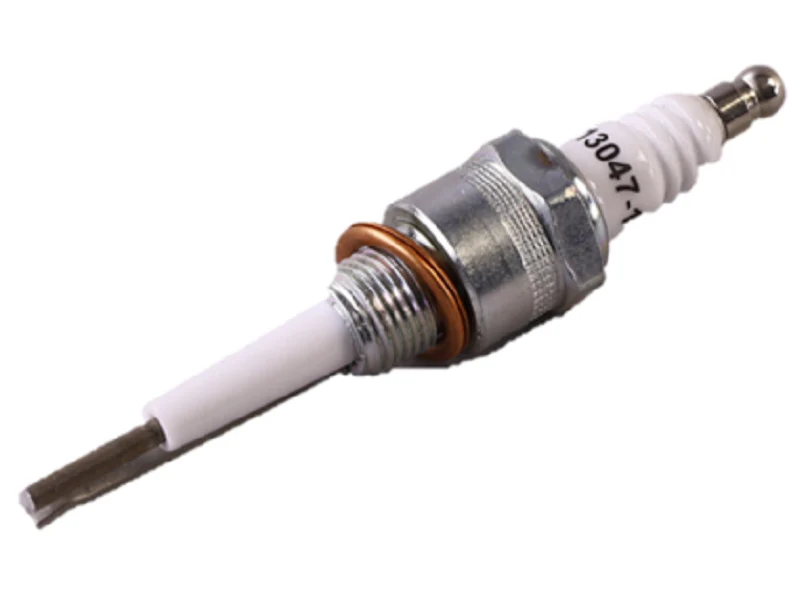

Eclipse 13047-1 Ignitor
The Eclipse 13047-1 Ignitor is a heavy-duty spark electrode specifically engineered for reliable ignition in industrial furnace and process heating applications. Featuring a 1-5/8 inch insertion length, this component is designed for precise positioning within the burner's air-fuel stream to ensure consistent arc formation. The high-grade alumina ceramic insulator provides superior dielectric strength and thermal shock resistance, preventing electrical leakage even under high-temperature cycling. Technicians typically utilize this ignitor in Eclipse ThermJet and RatioMatic burners where rapid, dependable ignition is critical for system safety and efficiency. The electrode is constructed from specialized alloys to resist oxidation and carbon fouling, maintaining a sharp spark profile over extended service intervals. When replacing a fouled or cracked electrode, ensure the mounting flange is properly seated to maintain the correct gap distance, as accurate spark ignitor electrode placement is essential for preventing delayed ignition and ensuring stable flame signal detection in industrial burner systems.
Technical Benefits
- High-Temperature Durability: Alumina ceramic insulation prevents voltage breakdown at extreme temperatures.
- Precise Arc Positioning: The 1-5/8" reach allows for optimal spark placement in high-velocity air streams.
- Corrosion Resistance: Specialized electrode alloy minimizes material erosion and tip degradation.
- Universal Compatibility: Standardized fit for various Eclipse burner ignition configurations.
Common Technical Questions
How do I verify the insertion length for my burner?
Measure from the mounting shoulder to the tip of the electrode; this Eclipse 13047-1 model features a 1-5/8 inch reach for specific burner head depths.
Will this ignitor work with high-voltage ignition transformers?
Yes, its insulation is rated for standard 6,000V to 10,000V industrial ignition transformers used in gas-fired furnace systems.
What causes premature failure of these electrodes?
Excessive vibration or improper fuel-to-air ratios can lead to carbon buildup or ceramic cracking; always inspect for physical integrity during annual preventative maintenance.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
