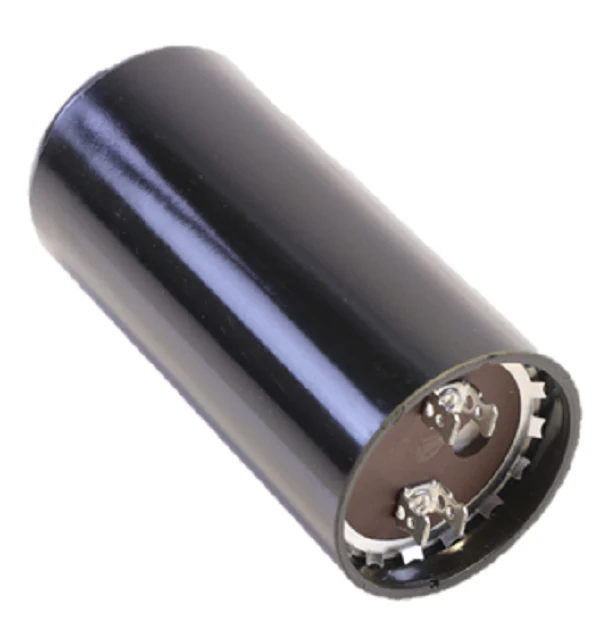

Dodge(Baldor) EC1645A06SP Start Capacitor
The Dodge (Baldor) EC1645A06SP Start Capacitor is a high-capacitance component engineered for single-phase motor applications requiring significant starting torque. Rated for 645-777 MFD (uF) at 120VAC, this electrolytic capacitor provides the phase shift necessary to overcome initial mechanical inertia in HVACR compressors and industrial pump motors. Enclosed in a rugged, moisture-resistant phenolic resin case, it is designed to withstand the high-temperature environments typical of mechanical rooms. The EC1645A06SP features standard dual-blade quick-connect terminals, ensuring a fast, secure interface during field replacements. Technicians should verify that the voltage rating and microfarad range align with the original OEM specifications to prevent premature winding failure or start relay chatter. This 120-volt start capacitor is a reliable solution for restoring operational efficiency to fractional and integral horsepower motors experiencing sluggish starts or high locked-rotor amperage (LRA) readings.
Technical Specifications and Benefits- High Capacitance Range: Delivers 645-777 uF for high-torque motor startups.
- Voltage Compatibility: Rated for 120VAC systems, providing a robust safety margin for standard line fluctuations.
- Industrial Construction: Phenolic housing offers superior insulation and protection against environmental contaminants.
- Universal Connectivity: Equipped with 1/4-inch terminals for compatibility with various motor leads and potential relays.
- Optimized Performance: Facilitates rapid motor acceleration to reduce the duration of high inrush current.
What causes a 645-777 uF start capacitor to fail?
Repeated short-cycling or a faulty potential relay can leave the start capacitor in the circuit too long, leading to overheating and casing rupture. Always check the relay operation when replacing the capacitor.
Can I use this capacitor if my old one is rated 110V?
Yes, you can use a capacitor with a higher voltage rating (120VAC) to replace a lower-rated one (110VAC), provided the microfarad range matches the motor manufacturer’s requirements.
Does the EC1645A06SP require a discharge resistor?
While many industrial start capacitors come with a pre-installed resistor to bleed off residual voltage, always check your specific motor circuit. If the previous capacitor had one, ensure a 2-watt resistor is utilized to protect the contacts of your start relay.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
