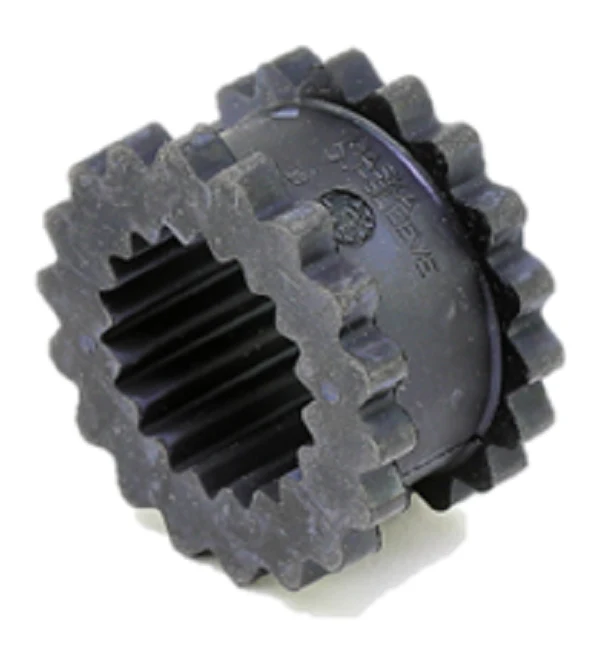

Dodge(Baldor) 004242 Insert Split Sleeve
The Dodge (Baldor) 004242 Insert Split Sleeve is a critical component for power transmission, specifically designed as a 3JES EPDM insert for D-Flex coupling systems. As an elastomeric sleeve coupling element, it excels at absorbing shock loads and dampening vibrations that can lead to premature motor or bearing failure. This split sleeve design allows for rapid replacement without requiring the disassembly of the connected equipment, directly reducing downtime during scheduled maintenance or emergency repairs. Constructed from high-tensile EPDM rubber, the 004242 model provides a torque rating of 60 in-lb and can reach a maximum speed of 9,200 RPM. This material choice ensures a wide operating temperature range from -30°F to +275°F, making it suitable for demanding HVACR and industrial pump applications. Its external diameter is concentric to the bore to facilitate precise alignment, effectively managing angular misalignment up to 1° and parallel misalignment up to 0.010 inches.
Key Benefits:- EPDM Material: Provides superior resistance to heat, ozone, and environmental aging in harsh mechanical rooms.
- Split Design: Simplifies installation as a replacement coupling sleeve, allowing for wrap-around fitting on existing flanges.
- Vibration Dampening: Protects sensitive drive components by isolating torsional vibration and reducing noise levels.
- No Lubrication Required: Delivers a clean, maintenance-free solution for 3JES coupling assemblies.
- High RPM Capability: Rated for up to 9,200 RPM, ensuring stability in high-speed fan and pump applications.
What is the difference between JE and JES sleeves?
The "JE" indicates a one-piece solid EPDM construction, whereas the "JES" signifies a one-piece split EPDM construction. The Dodge 004242 is the JES version, allowing it to be installed or replaced without moving the coupled hubs away from each other.
Is this sleeve compatible with other brand flanges?
The D-Flex 3JES sleeve is designed for standard Size 3 flanges. While largely interchangeable with other industry-standard S-Flex or Sure-Flex flanges of the same size, we recommend verifying the specific torque and alignment tolerances of your existing hardware.
How do I know when the EPDM insert needs replacement?
Technicians should inspect the elastomeric element for signs of cracking, excessive rubber dust, or hardening. Because EPDM resists heat well, physical wear in the tooth engagement area is typically the primary indicator for a swap.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
