Danfoss 195B0011 Compressor Kit

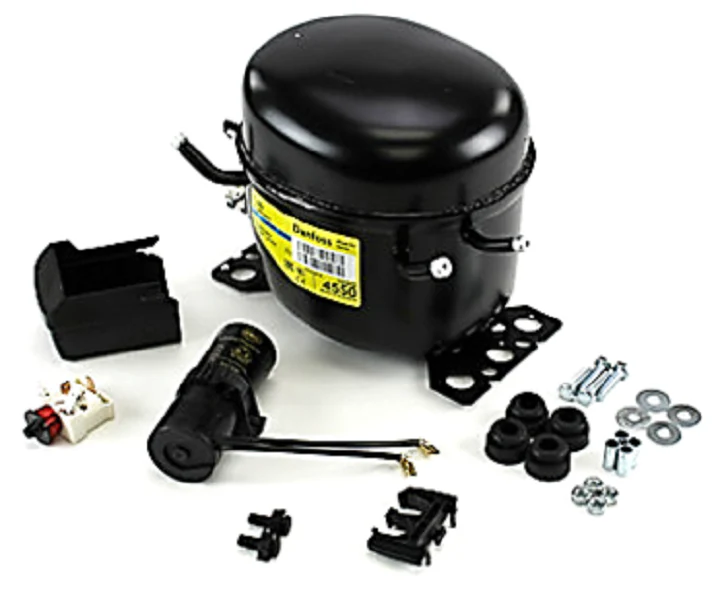

The Danfoss 195B0011 Compressor Kit features the TL5GX reciprocating compressor, a high-performance hermetic unit engineered specifically for R134a refrigerant systems. Operating on a 220-240V 50/60Hz single-phase power supply, this CSIR/RSIR motor design is optimized for high back pressure (HBP) and medium back pressure applications, delivering a rated capacity of approximately 1100 BTU/hr. This 195B0011 kit is a technician-preferred choice for commercial refrigeration maintenance, offering a compact footprint with a 5.08 cm³ displacement and a robust 3500 RPM operation at 60Hz. The Danfoss TL5GX utilizes POE oil for superior lubrication and moisture resistance within HFC systems. Each 195B0011 kit includes the necessary electrical components and mounting hardware to ensure a clean, drop-in replacement. When charging the system, note the maximum refrigerant charge of 400g and ensure the fan cooling (F2) requirements are met for high ambient environments to maintain motor integrity and discharge temperature stability.
- Efficient R134a Performance: Specifically valved and shimmed for stable R134a operation in light commercial and household applications.
- Versatile Voltage Range: Rated for 220-240V, the motor handles fluctuations from 187V to 255V, reducing the risk of burnout during brownouts.
- High Starting Torque (HST): The 195B0011 configuration is designed to start under pressure, making it ideal for systems with capillary tubes or expansion valves.
- Complete Replacement Solution: Shipped as a full kit with starting device and capacitor to prevent component mismatching during field service.
- Compact Reciprocating Design: At only 7.5kg, it offers a high power-to-weight ratio for tight mechanical compartments.
Common Questions
Can I use this compressor in a system originally running R12 or R404A?
The TL5GX is optimized for R134a and utilizes POE oil. While technically possible in some R134a-converted systems, it is not recommended for R404A due to different pressure curves and motor loading requirements. Always verify your system's design pressures.
What electrical components are included in the 195B0011 kit?
This Danfoss compressor kit typically includes the PTC starting device or 117U series relay, a 60µF start capacitor, and the terminal cover with cord relief to ensure the CSIR motor starts reliably under load.
Does this unit require additional cooling during operation?
For HBP applications or in ambient temperatures exceeding 32°C, fan cooling (3.0 m/s) is required to protect the windings. Static cooling is only sufficient in specific low-load LBP configurations.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $252.58
-65%$252.58
$88.40Danfoss 195B0011 Compressor Kit
The Danfoss 195B0011 Compressor Kit features the TL5GX reciprocating compressor, a high-performance hermetic unit engineered specifically for R134a refrigerant systems. Operating on a 220-240V 50/60Hz single-phase power supply, this CSIR/RSIR motor design is optimized for high back pressure (HBP) and medium back pressure applications, delivering a rated capacity of approximately 1100 BTU/hr. This 195B0011 kit is a technician-preferred choice for commercial refrigeration maintenance, offering a compact footprint with a 5.08 cm³ displacement and a robust 3500 RPM operation at 60Hz. The Danfoss TL5GX utilizes POE oil for superior lubrication and moisture resistance within HFC systems. Each 195B0011 kit includes the necessary electrical components and mounting hardware to ensure a clean, drop-in replacement. When charging the system, note the maximum refrigerant charge of 400g and ensure the fan cooling (F2) requirements are met for high ambient environments to maintain motor integrity and discharge temperature stability.
- Efficient R134a Performance: Specifically valved and shimmed for stable R134a operation in light commercial and household applications.
- Versatile Voltage Range: Rated for 220-240V, the motor handles fluctuations from 187V to 255V, reducing the risk of burnout during brownouts.
- High Starting Torque (HST): The 195B0011 configuration is designed to start under pressure, making it ideal for systems with capillary tubes or expansion valves.
- Complete Replacement Solution: Shipped as a full kit with starting device and capacitor to prevent component mismatching during field service.
- Compact Reciprocating Design: At only 7.5kg, it offers a high power-to-weight ratio for tight mechanical compartments.
Common Questions
Can I use this compressor in a system originally running R12 or R404A?
The TL5GX is optimized for R134a and utilizes POE oil. While technically possible in some R134a-converted systems, it is not recommended for R404A due to different pressure curves and motor loading requirements. Always verify your system's design pressures.
What electrical components are included in the 195B0011 kit?
This Danfoss compressor kit typically includes the PTC starting device or 117U series relay, a 60µF start capacitor, and the terminal cover with cord relief to ensure the CSIR motor starts reliably under load.
Does this unit require additional cooling during operation?
For HBP applications or in ambient temperatures exceeding 32°C, fan cooling (3.0 m/s) is required to protect the windings. Static cooling is only sufficient in specific low-load LBP configurations.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
