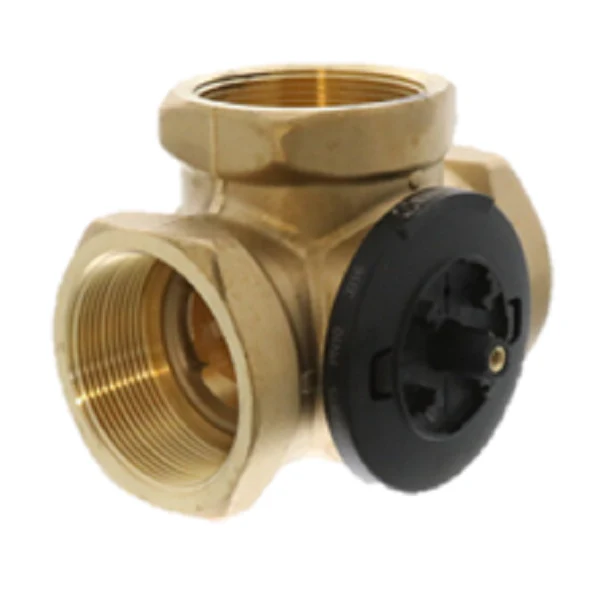

Danfoss 193B-1507 Valve Body
The Danfoss 193B-1507 is a high-performance 2" 3-way mixing valve from the ESBE VRG130 series, specifically engineered for hydronic heating and cooling systems where precise temperature regulation is critical. Built with a robust brass valve body, this component offers a substantial 46.8 Cv flow capacity, making it an ideal choice for large-scale residential and light commercial applications. It features a rotary design for maximum installation flexibility in constrained piping layouts and is designed to replace older MG and G series models. This 3-way valve accommodates media temperatures ranging from 14°F to 230°F at a maximum operating pressure of 145 PSI. For automated control, the 193B-1507 is compatible with ARA600 series and 90 series electronic motor actuators, ensuring seamless integration with building management systems and outdoor reset controllers. The FNPT connection ensures a reliable, leak-resistant fit for standard NPT piping.
Key Benefits:- Versatile Application: Functions effectively in both mixing and diverting configurations for chilled water and hydronic heating loops.
- Enhanced Flow Dynamics: High 46.8 Cv rating ensures minimal pressure drop across the valve in high-demand 2-inch piping systems.
- Durable Brass Construction: High-grade DZR brass provides long-term corrosion resistance and stability under fluctuating thermal loads.
- Actuator Compatibility: Designed for easy pairing with Danfoss ESBE actuators for precise, automated fluid temperature control.
- Low Internal Leakage: Tight tolerances within the rotary mechanism minimize energy waste and unauthorized heat transfer.
What is the maximum glycol concentration allowed for this valve?
The Danfoss 193B-1507 is suitable for water and water-glycol mixtures with a maximum concentration of 50% glycol in closed-loop systems.
Can this 3-way brass valve be used for diverting applications?
Yes, the VRG series is designed for dual-purpose operation, serving effectively as either a mixing valve (two inlets, one outlet) or a diverting valve (one inlet, two outlets).
Which actuators are compatible with the 193B-1507?
This valve primary connects with the ARA600 series or series 90 electronic motor actuators using the appropriate mounting kits for automated HVAC regulation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $503.49
-65%$503.49
$176.22Danfoss 193B-1507 Valve Body
The Danfoss 193B-1507 is a high-performance 2" 3-way mixing valve from the ESBE VRG130 series, specifically engineered for hydronic heating and cooling systems where precise temperature regulation is critical. Built with a robust brass valve body, this component offers a substantial 46.8 Cv flow capacity, making it an ideal choice for large-scale residential and light commercial applications. It features a rotary design for maximum installation flexibility in constrained piping layouts and is designed to replace older MG and G series models. This 3-way valve accommodates media temperatures ranging from 14°F to 230°F at a maximum operating pressure of 145 PSI. For automated control, the 193B-1507 is compatible with ARA600 series and 90 series electronic motor actuators, ensuring seamless integration with building management systems and outdoor reset controllers. The FNPT connection ensures a reliable, leak-resistant fit for standard NPT piping.
Key Benefits:- Versatile Application: Functions effectively in both mixing and diverting configurations for chilled water and hydronic heating loops.
- Enhanced Flow Dynamics: High 46.8 Cv rating ensures minimal pressure drop across the valve in high-demand 2-inch piping systems.
- Durable Brass Construction: High-grade DZR brass provides long-term corrosion resistance and stability under fluctuating thermal loads.
- Actuator Compatibility: Designed for easy pairing with Danfoss ESBE actuators for precise, automated fluid temperature control.
- Low Internal Leakage: Tight tolerances within the rotary mechanism minimize energy waste and unauthorized heat transfer.
What is the maximum glycol concentration allowed for this valve?
The Danfoss 193B-1507 is suitable for water and water-glycol mixtures with a maximum concentration of 50% glycol in closed-loop systems.
Can this 3-way brass valve be used for diverting applications?
Yes, the VRG series is designed for dual-purpose operation, serving effectively as either a mixing valve (two inlets, one outlet) or a diverting valve (one inlet, two outlets).
Which actuators are compatible with the 193B-1507?
This valve primary connects with the ARA600 series or series 90 electronic motor actuators using the appropriate mounting kits for automated HVAC regulation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
