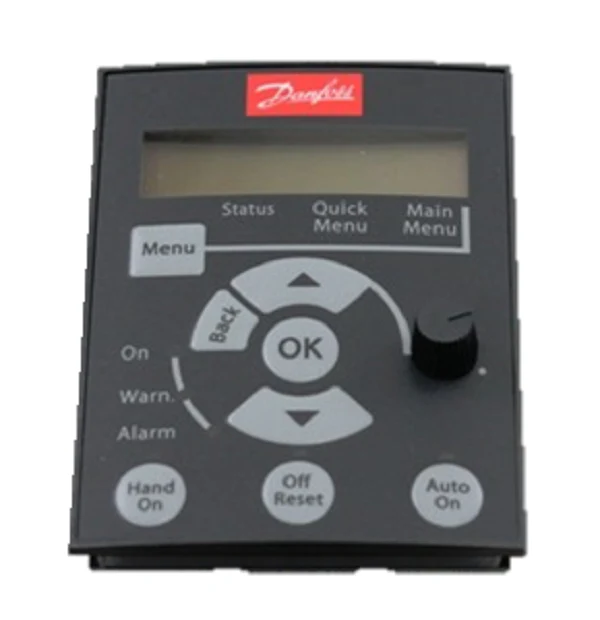

Danfoss 132B-0101 Keypad
The Danfoss 132B-0101 LCP 11 is a dedicated VFD keypad designed for local control and parameter configuration of Danfoss VLT Micro Drive FC 51 systems. Built for professional field integration, this numerical local control panel features a backlit LCD display that allows technicians to monitor system status, adjust setpoints, and verify frequency output in real-time. This interface is essential for manual commissioning and local overriding of automated sequences without requiring external software. The 132B-0101 provides a rugged, tactile input for selecting motor parameters, ramps, and load compensation settings. Its IP21 rated housing ensures durability in mechanical rooms while maintaining a direct plug-and-play connection to the drive's serial communication port. For contractors managing HVACR equipment, this unit is the standard diagnostic tool for identifying drive fault codes and executing quick copy/paste parameter transfers between identical drive frames to minimize downtime on the job site.
Key Benefits for Technicians- Universal FC 51 Compatibility: Direct interface for any horsepower rating within the VLT Micro Drive series.
- Parameter Copy Function: Simplifies multi-drive installations by storing settings and uploading them to additional units.
- Clear Diagnostics: Displays active alarm codes and warning indicators to streamline troubleshooting of motor overloads or phase loss.
- Hand-Off-Auto Control: Allows for immediate manual control during system maintenance or startup sequences.
- High-Contrast Display: Optimized for readability in low-light mechanical rooms or brightly lit control cabinets.
How do I transfer settings between drives using the 132B-0101?
Access the main menu, navigate to parameter 0-50, and select 'All from LCP' to download settings to the keypad, then connect to the new drive and select 'All to LCP'.
Can this keypad be remotely mounted?
Yes, the Danfoss 132B-0101 can be cabinet-mounted using a remote mounting kit (LCP Remote Mounting Kit) to allow interface access without opening the enclosure door.
Does this unit show motor amperage and frequency simultaneously?
The display can be configured to toggle between output frequency (Hz), motor current (A), and setpoint percentages to provide a comprehensive look at load performance.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Danfoss 132B-0101 Keypad
The Danfoss 132B-0101 LCP 11 is a dedicated VFD keypad designed for local control and parameter configuration of Danfoss VLT Micro Drive FC 51 systems. Built for professional field integration, this numerical local control panel features a backlit LCD display that allows technicians to monitor system status, adjust setpoints, and verify frequency output in real-time. This interface is essential for manual commissioning and local overriding of automated sequences without requiring external software. The 132B-0101 provides a rugged, tactile input for selecting motor parameters, ramps, and load compensation settings. Its IP21 rated housing ensures durability in mechanical rooms while maintaining a direct plug-and-play connection to the drive's serial communication port. For contractors managing HVACR equipment, this unit is the standard diagnostic tool for identifying drive fault codes and executing quick copy/paste parameter transfers between identical drive frames to minimize downtime on the job site.
Key Benefits for Technicians- Universal FC 51 Compatibility: Direct interface for any horsepower rating within the VLT Micro Drive series.
- Parameter Copy Function: Simplifies multi-drive installations by storing settings and uploading them to additional units.
- Clear Diagnostics: Displays active alarm codes and warning indicators to streamline troubleshooting of motor overloads or phase loss.
- Hand-Off-Auto Control: Allows for immediate manual control during system maintenance or startup sequences.
- High-Contrast Display: Optimized for readability in low-light mechanical rooms or brightly lit control cabinets.
How do I transfer settings between drives using the 132B-0101?
Access the main menu, navigate to parameter 0-50, and select 'All from LCP' to download settings to the keypad, then connect to the new drive and select 'All to LCP'.
Can this keypad be remotely mounted?
Yes, the Danfoss 132B-0101 can be cabinet-mounted using a remote mounting kit (LCP Remote Mounting Kit) to allow interface access without opening the enclosure door.
Does this unit show motor amperage and frequency simultaneously?
The display can be configured to toggle between output frequency (Hz), motor current (A), and setpoint percentages to provide a comprehensive look at load performance.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
