Danfoss 130B1117 Mounting Kit

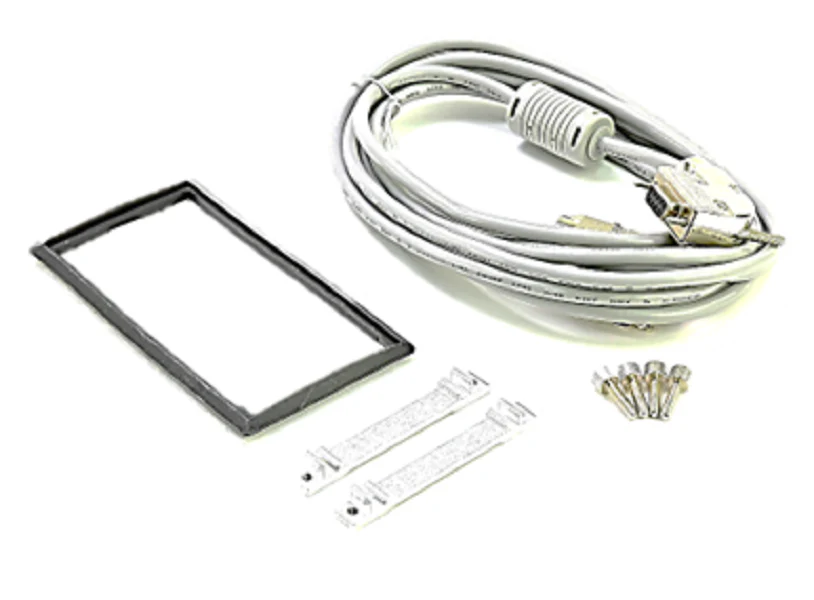

The Danfoss 130B1117 is a specialized VLT Panel Mounting Kit designed for the seamless remote installation of LCP 101, LCP 102, and LCP 21 control panels. Engineered for VLT HVAC Drive FC 102, VLT Aqua Drive FC 202, and VLT AutomationDrive FC 301/302 series, this kit facilitates an IP66/NEMA 4X rated front-of-cabinet interface. The package includes a durable gasket, 10-foot RS485 cable, and high-grade fastening hardware to ensure a vibration-resistant seal in demanding mechanical rooms. By relocating the Local Control Panel to the enclosure exterior, technicians can perform VFD diagnostics and parameter adjustments without opening the cabinet door, maintaining arc flash safety protocols. This hardware is essential for NEMA 12 and NEMA 4X enclosures where environmental protection of the internal power electronics is critical. The assembly ensures reliable Modbus communication between the drive and the interface while enhancing system accessibility for routine variable frequency drive maintenance.
Technical Benefits for Contractors- Environmental Integrity: Maintains an IP66 rating when properly installed on a flat surface, protecting internal components from moisture and dust.
- Extended Connectivity: Features a 3-meter (approx. 10 ft) shielded cable for flexible remote panel mounting configurations.
- Universal Compatibility: Fits standard Danfoss VLT series numeric and graphical local control panels (LCP).
- Simplified Installation: Includes precision-engineered mounting brackets and a high-compression sealing gasket for a flush fit.
Is the 130B1117 compatible with the LCP 102 Graphical Display?
Yes, this mounting kit is specifically designed to house the LCP 102 Graphical Display and the LCP 101 Numerical Display, providing full functionality and passthrough communication.
What is the enclosure rating after installing this kit?
When installed according to specifications on a flat cabinet surface, the assembly provides an IP66 / NEMA 4X ingress protection rating from the front of the panel.
Does this kit include the actual LCP display unit?
No, the Danfoss 130B1117 is a mounting hardware kit only. The LCP display must be purchased separately or repurposed from the drive’s local cradle.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
