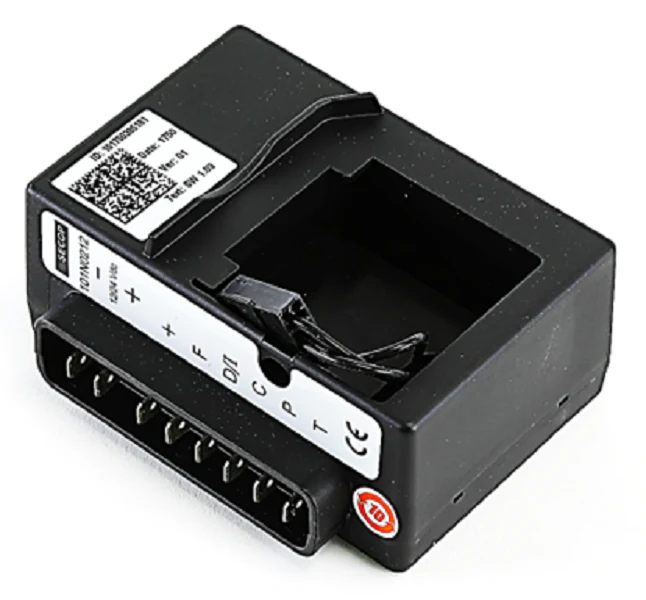

Danfoss 101N0212 Electronic Unit
Maintain peak performance in mobile and stationary refrigeration systems with the Danfoss 101N0212 Electronic Unit. Engineered for 12-24V DC operation, this high-efficiency controller is the standard starting device for Secop BD35F, BD50F, and BD35K compressors. As a professional-grade direct replacement for the 101N0210 model, it features integrated microcontroller technology that optimizes electronic efficiency and increases the overall Coefficient of Performance (COP). This unit is designed to handle harsh environments with a maximum ambient temperature rating of 55°C and includes built-in thermal protection to prevent terminal failure during high-load cycles.
Technicians can utilize the communication interface for advanced settings via Tool4Cool software or configure fixed compressor speeds between 2,000 and 3,500 rpm using specific resistors. The dual voltage capability automatically detects 12V or 24V inputs, ensuring stable compressor starts in marine, RV, and solar-powered applications. For diagnostic precision, the dedicated "D" terminal supports a 10mA LED to provide real-time fault code flashing for low voltage, fan overloads, or motor start errors.
Key Benefits for Contractors:- Universal Compatibility: Fits all Danfoss and Secop BD35 and BD50 series compressors used in Dometic, Isotherm, and Vitrifrigo units.
- Enhanced Protection: Features battery protection with adjustable cut-out/cut-in levels and reverse polarity protection.
- Diagnostic Efficiency: Integrated LED fault code support allows for rapid troubleshooting of system-side vs. electrical-side issues.
- Advanced Control: Supports both NTC thermistors and mechanical thermostats for flexible temperature management.
- Fan Output: Provides a regulated 12V output (max 0.5A) suitable for cooling fans even when the main system is running on 24V.
What is the difference between the 101N0210 and 101N0212?
The 101N0212 is the latest generation update, utilizing a microcontroller for 5% higher efficiency and lower electromagnetic interference (EMI). It is 100% backwards compatible and does not require an external heat sink.
How do I test if the electronic unit is faulty?
A common field test is to bypass the thermostat by jumping terminals 'C' and 'T'. If the compressor starts, the thermostat or wiring is the issue. If it fails with a 3-flash LED code, the module or compressor motor may require replacement.
Can I use this for solar applications without a battery?
Yes, by installing a 220 k? resistor between terminals C and P, you can optimize the starting torque for solar-direct setups.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
