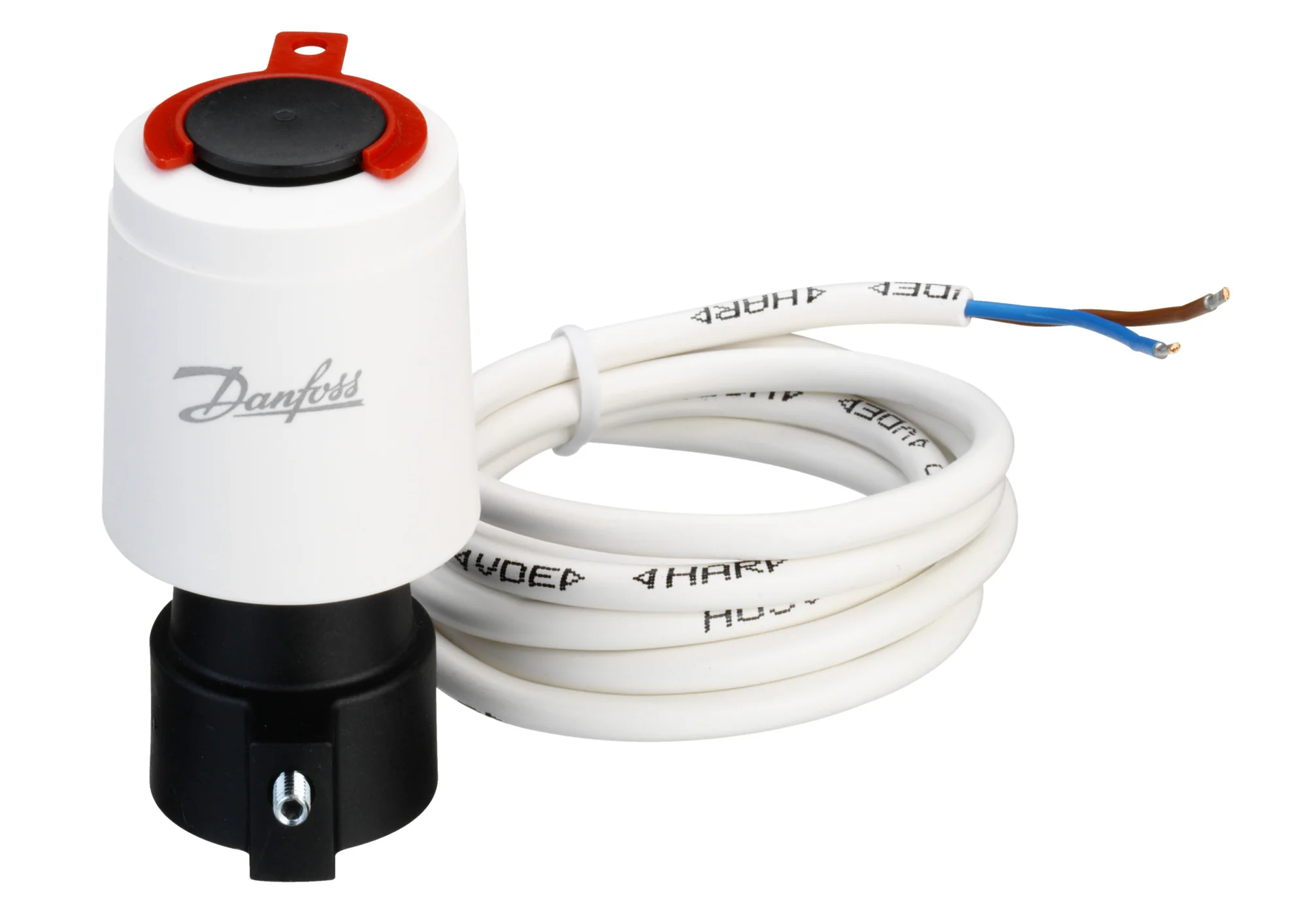

Danfoss 088H-3110 Actuator
The Danfoss 088H-3110 Actuator is a professional-grade TWA-A thermal wax actuator engineered for reliable on/off control in hydronic heating systems. Specifically designed for Danfoss RA 2000 valves, this 24V unit operates in a Normally Closed (NC) configuration, ensuring the valve remains shut when no power is applied. With an average power consumption of just 2 VA, it provides an energy-efficient solution for managing flow in floor heating manifolds and radiator systems. The integrated visual position indicator allows for immediate onsite verification of the valve state, a critical feature for rapid system balancing and troubleshooting.
Constructed with a 120cm cable for flexible field wiring, the Danfoss 088H3110 is rated IP41 for protection against vertical water drops, making it suitable for standard mechanical room environments. Its slow-acting thermal wax element is purposely designed to eliminate water hammer, protecting your system's pipework and sensitive components from pressure shocks. This actuator is a direct fit for RA connection types, commonly found in hydronic floor heating and zone control applications. For contractors, the red mounting split on the indicator ensures the valve is held open during installation, simplifying the initial mounting process before the system is powered.
Key Benefits for Your Installation:- Water Hammer Prevention: Thermal wax element ensures slow, controlled opening and closing cycles.
- Visual Verification: The position indicator provides clear, at-a-glance status of the valve position.
- Simplified Mounting: Features a red installation split to keep the Normally Closed valve open during setup.
- Compatibility: Optimized specifically for Danfoss RA valves and floor heating manifolds.
- Efficiency: Low 2 VA power draw minimizes the load on 24V control transformers.
- Will this work with M30x1.5 manifolds? No, the 088H3110 uses the Danfoss RA click connection; for M30x1.5 threads, you would typically require a TWA-K series actuator.
- Does this model include an end switch? This specific model does not include an auxiliary end switch. For applications requiring an end switch, look for the NC/S versions (e.g., 088H3114).
- How do I know if the actuator is open or closed? Look at the top of the unit; the position indicator will show a colored ring when energized and open, providing a clear visual cue.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
