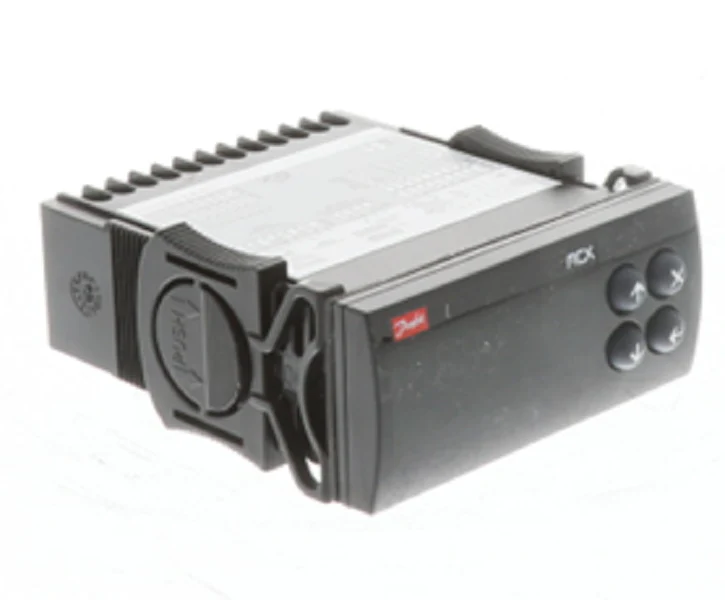

Danfoss 080G0066 Controller
The Danfoss 080G0066 MCX06C Controller is a high-performance HVAC programmable controller designed for precise climate and refrigeration management. Operating on a 24V AC/DC supply voltage, this compact unit integrates 6 digital inputs, 4 analog inputs, 6 relay outputs, and 2 analog outputs to handle complex sequencing across industrial platforms. For field integration, it supports standard Modbus RS485 serial interface and CANbus local network communication, allowing for seamless data exchange between master and slave modules. The 32x74 mm panel mount design features a clear LED display and an integrated RTC (Real Time Clock) for managing scheduled automation and logging. Reliability in demanding environments is ensured by the IP65 enclosure rating. This Danfoss MCX06C 080G0066 unit provides the flexibility required for rapid application uploads via programming keys, making it a staple for contractors maintaining chillers, air handling units, and process cooling systems.
Key Benefits:- Universal Compatibility: Supports MODBUS and CANBUS protocols for flexible integration with existing building management systems.
- High I/O Density: Configured with 6 digital outputs and multiple analog points for comprehensive component control in a compact footprint.
- Advanced Time Management: Built-in Real Time Clock facilitates precise weekly scheduling and accurate data logging without external modules.
- Rugged Field Performance: Features an IP65-rated front panel to protect sensitive electronics against dust and low-pressure water displacement.
Is the connector kit included with the 080G0066?
Standard packaging for the 080G0066 does not typically include the connector kit (Code No. 080G0175); these must be ordered separately for new installations.
Can I program this controller for specific HVAC applications?
Yes, the Danfoss MCX06C is fully programmable using MCXShape or via a physical programming key for rapid field deployment.
What is the maximum power consumption of this unit?
The controller is designed for efficiency, with a maximum power consumption of approximately 6W (9VA) during full relay operation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
