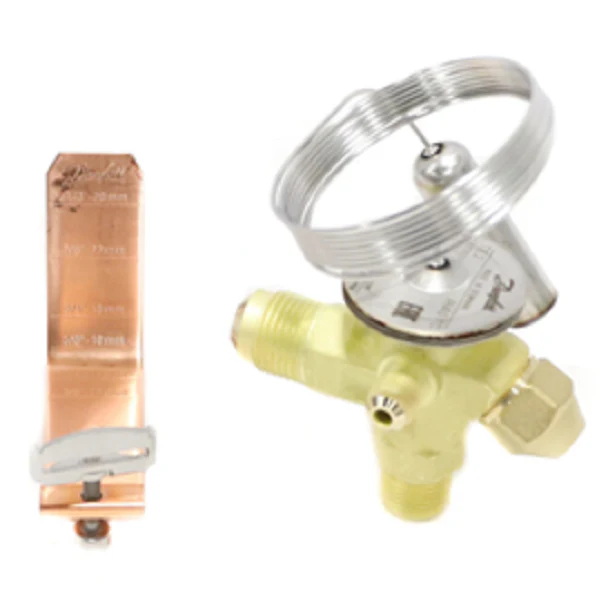

Danfoss 068Z3501 TXV
The Danfoss 068Z3501 is a high-performance TE2 thermostatic expansion valve specifically engineered for R407C refrigerant applications. Built for precision in liquid injection, this externally equalized TXV features a 3/8 inch flare inlet and a 1/2 inch flare outlet, making it a versatile choice for both air conditioning and commercial refrigeration systems. Designed to maintain constant superheat at the evaporator outlet, the 068Z3501 accommodates a wide temperature range from -40°F to +50°F, ensuring stable performance across varying load conditions. It includes a 5-foot capillary tube and a stainless steel bulb with a patented bulb strap for superior thermal transfer and simplified installation on the suction line. As an adjustable superheat expansion valve, it allows technicians to fine-tune system balance on-site. The durable brass body is rated for a maximum working pressure of 400 PSI, providing the reliability required in high-pressure environments while protecting the compressor from liquid slugging.
Key Benefits- Precise Superheat Control: Features an adjustable setting spindle to maintain optimal evaporator efficiency and prevent compressor floodback.
- Universal Versatility: Compatible with Danfoss interchangeable orifice assemblies (01-05 for bi-flow) for flexible mounting and easy capacity matching.
- Robust Construction: Engineered with a brass body and stainless steel power element to resist corrosion and withstand mechanical vibration.
- Simplified Installation: The 1/4 inch flare external equalization and included bulb strap streamline the retrofit or new installation process for field technicians.
- Wide Operating Envelope: Capable of handling refrigeration, freezing, and air conditioning tasks with a consistent 59-inch capillary reach.
Is the orifice included with the Danfoss 068Z3501?
No, as part of the Danfoss TE2 parts program, the 068Z3501 is the thermostatic element and valve body only. You must select the appropriate interchangeable orifice based on your required system tonnage.
Can this valve be used with refrigerants other than R407C?
This specific model is charged and calibrated for R407C. Using it with other refrigerants may result in improper superheat control and potential system instability.
When should the external equalization be used?
External equalization is required for systems using liquid distributors or those with a high pressure drop across the evaporator to ensure the valve accurately senses the pressure at the suction line outlet.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
