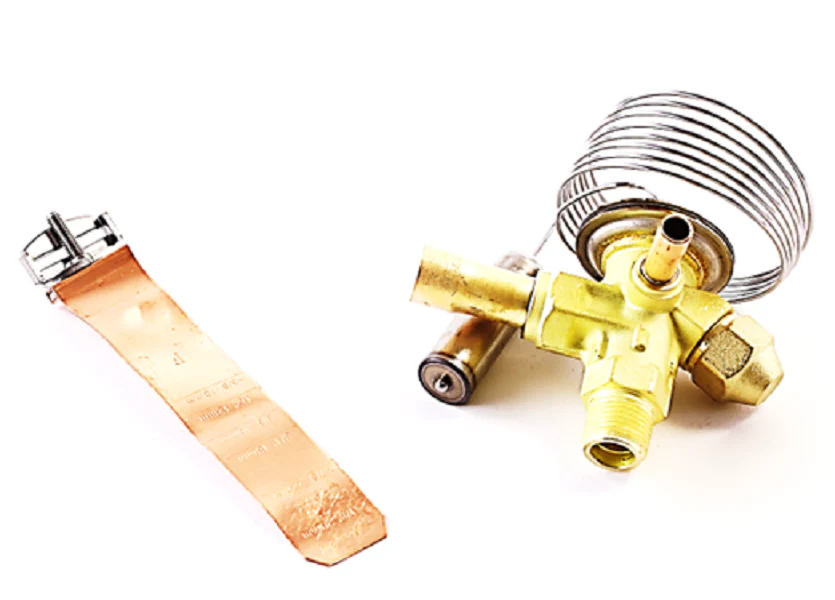

Danfoss 068Z3385 TXV
The Danfoss 068Z3385 is a professional-grade TEN 2 thermostatic expansion valve engineered for precise refrigerant metering in systems utilizing R134a or R513A. This externally equalized TXV features a 3/8" flare inlet and a 1/2" ODF solder outlet, making it a versatile choice for "dry" evaporators in commercial refrigeration and air conditioning. Designed with an interchangeable orifice assembly, the 068Z3385 allows for easy capacity matching and simplified field service. The stainless steel bulb and patented Danfoss bulb strap ensure superior temperature transfer from the suction line, maintaining a stable superheat even under varying load conditions. With a Max Working Pressure (MWP) of 500 psig and a temperature range of -40°F to 50°F (-40°C to +10°C), this valve is built to handle the rigorous demands of industrial cooling and food service environments without compromising on flow control accuracy.
Key Benefits- Precise Superheat Control: Maintains constant superheat at the evaporator outlet to protect the compressor from liquid slugging.
- Modular Orifice Design: Compatible with interchangeable orifices for flexible capacity adjustments in the field.
- Solder/Flare Hybrid Connection: Features 3/8" Flare x 1/2" Solder connections for high-integrity installation.
- External Equalization: Includes a 1/4" solder equalization connection to compensate for pressure drops across the evaporator.
- Durable Brass Body: Constructed with a robust brass body and 59-inch capillary tube for long-term reliability in high-pressure environments.
Is the orifice included with the 068Z3385?
No, as part of the Danfoss parts program, the orifice assembly must be selected and purchased separately based on your specific capacity requirements.
Can this valve be used with R513A?
Yes, the 068Z3385 is fully compatible with both R134a and R513A refrigerants for various cooling applications.
What is the purpose of the external equalization on this model?
The 1/4" solder equalization port allows the valve to sense pressure at the evaporator outlet, ensuring accurate superheat regulation in systems with significant pressure drops.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
