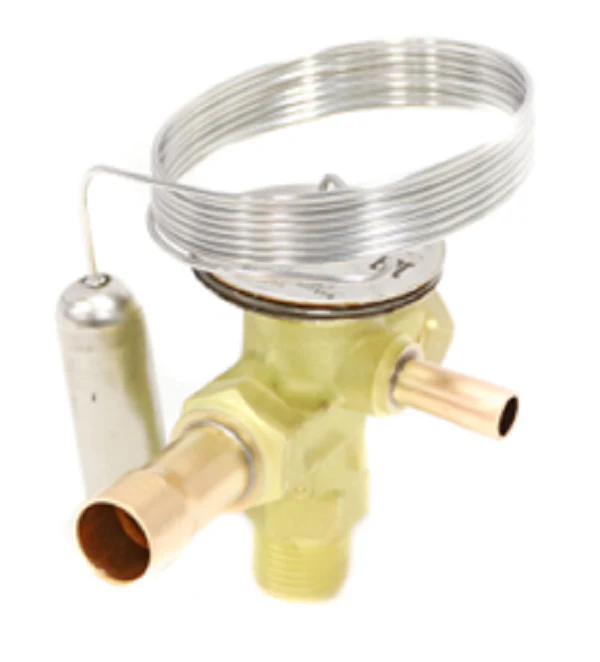

Danfoss 068Z3284 TXV
The Danfoss 068Z3284 is a professional-grade TEX 2 thermostatic expansion valve designed for precise liquid injection in refrigeration and air conditioning systems. This model is specifically calibrated for use with R22 and R407C refrigerants, offering an adjustable superheat functionality that allows technicians to optimize system performance across a broad evaporating temperature range of -40°F to +50°F (-40°C to +10°C). Featuring an angleway valve body with a 3/8" SAE flare inlet and a 1/2" ODF solder outlet, this externally equalized TXV ensures stable operation even in systems with significant pressure drops across the evaporator.
Built with a durable brass body and a 59-inch capillary tube, the 068Z3284 is part of the modular T2/TE2 series. Use this valve to maintain a constant superheat at varying load conditions, effectively protecting the compressor from liquid slugging while maximizing energy efficiency. Please note that the orifice assembly (sizes 0X through 06) and flare nuts are sold separately, allowing for customizable rated capacities from 0.15 to 4.5 TR depending on your specific application requirements.
Key Benefits for the Technician:
- Modular Versatility: The interchangeable orifice assembly simplifies stocking and enables rapid capacity matching in the field.
- Precision Control: Features adjustable superheat settings to fine-tune the evaporator's efficiency and ensure compressor safety.
- Robust Construction: A high-quality brass body and stainless steel power element provide long-term reliability in demanding HVACR environments.
- Optimized Flow: The externally equalized design provides accurate sensing, making it ideal for large-scale or high-static evaporators.
- Broad Compatibility: Efficiently manages refrigerant flow for both R22 and R407C systems within refrigeration and AC applications.
Common Questions & Technical Insights:
Does this valve come with the orifice included?
No, the 068Z3284 is the valve body and power element only. The interchangeable orifice must be selected separately based on your required tonnage and system capacity.
Why choose an externally equalized valve over an internally equalized one?
External equalization is necessary whenever there is a pressure drop greater than 2 psi in the evaporator. It ensures the valve responds to the actual pressure at the evaporator outlet, preventing starving or flooding of the coil.
Can I use this TXV with R410A?
No, this specific model (TEX 2) is balanced for R22 and R407C. Using it with R410A will result in incorrect superheat levels and potential system failure due to the differing pressure-temperature relationships.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
