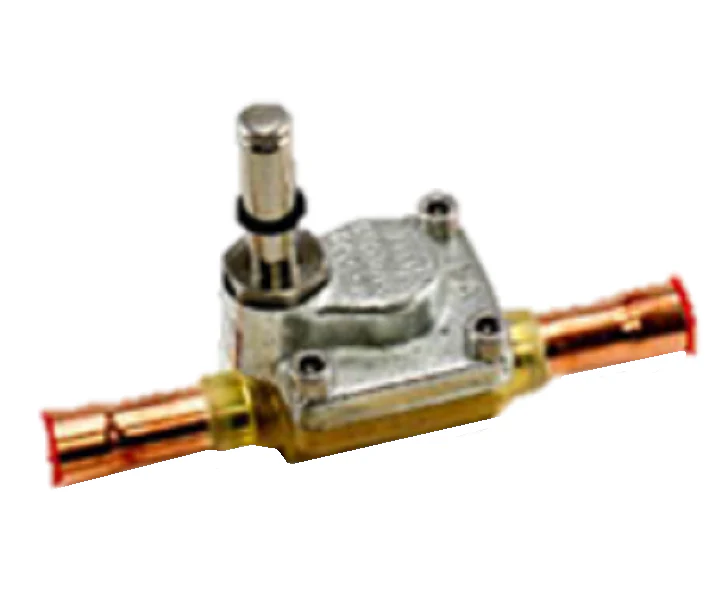

Danfoss 068F5035 Valve
The Danfoss 068F5035 Electric Expansion Valve (AKV 15-1) is an industrial-grade solution for refrigeration systems requiring ultra-precise refrigerant flow control. Unlike traditional thermostatic valves, this high-performance Electric Expansion Valve utilizes Pulse Width Modulation (PWM) to match coil load with exacting accuracy across a 6-second period. This AKV 15-1 model is optimized for high-pressure applications with a Maximum Working Pressure of 500 psi (34.5 bar) and a Safe Working Pressure up to 667 psig, making it suitable for modern high-pressure systems.
Designed as a normally closed (NC), straightway valve, the 068F5035 effectively doubles as a solenoid valve, providing positive shut-off during the off-cycle to prevent liquid migration. It features 3/4 x 3/4 ODF solder connections for streamlined brazing into the liquid line. For optimal performance, this valve should be paired with Danfoss ADAP-KOOL controllers (such as the EKC 315A or AK-CC series) and integrated with a 100 µm external filter to protect the 5.6 mm orifice assembly.
Key Benefits for the Contractor:- Multi-Refrigerant Compatibility: Fully approved for R134a, R404A, R410A, R22, R407C, R448A, and R744 (CO2) subcritical applications.
- PWM Precision: Offers a wide 10% to 100% regulation range, eliminating the hunting issues common in mechanical TXVs under varying loads.
- Replaceable Orifice: The AKV 15-1 orifice assembly is fully field-replaceable, allowing for simplified maintenance and capacity resizing without removing the valve body.
- Broad Temperature Range: Rated for medium temperatures from -40°F to 140°F, ensuring stable operation in walk-in coolers, freezers, and process chillers.
- Does this valve come with the coil? This part number (068F5035) is the valve body only. You must select a compatible AC or DC coil (e.g., Danfoss 10W or 12W series) based on your controller’s voltage requirements.
- What is the rated capacity? The AKV 15-1 has a rated capacity of 25 kW (7.1 TR) for R22 and approximately 18 kW (5.1 TR) for R404A/R507.
- Can I use this for ammonia (R717)? No, the AKV series is not compatible with ammonia. You should specify the AKVA 15 series for R717 applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $324.77
-65%$324.77
$113.67Danfoss 068F5035 Valve
The Danfoss 068F5035 Electric Expansion Valve (AKV 15-1) is an industrial-grade solution for refrigeration systems requiring ultra-precise refrigerant flow control. Unlike traditional thermostatic valves, this high-performance Electric Expansion Valve utilizes Pulse Width Modulation (PWM) to match coil load with exacting accuracy across a 6-second period. This AKV 15-1 model is optimized for high-pressure applications with a Maximum Working Pressure of 500 psi (34.5 bar) and a Safe Working Pressure up to 667 psig, making it suitable for modern high-pressure systems.
Designed as a normally closed (NC), straightway valve, the 068F5035 effectively doubles as a solenoid valve, providing positive shut-off during the off-cycle to prevent liquid migration. It features 3/4 x 3/4 ODF solder connections for streamlined brazing into the liquid line. For optimal performance, this valve should be paired with Danfoss ADAP-KOOL controllers (such as the EKC 315A or AK-CC series) and integrated with a 100 µm external filter to protect the 5.6 mm orifice assembly.
Key Benefits for the Contractor:- Multi-Refrigerant Compatibility: Fully approved for R134a, R404A, R410A, R22, R407C, R448A, and R744 (CO2) subcritical applications.
- PWM Precision: Offers a wide 10% to 100% regulation range, eliminating the hunting issues common in mechanical TXVs under varying loads.
- Replaceable Orifice: The AKV 15-1 orifice assembly is fully field-replaceable, allowing for simplified maintenance and capacity resizing without removing the valve body.
- Broad Temperature Range: Rated for medium temperatures from -40°F to 140°F, ensuring stable operation in walk-in coolers, freezers, and process chillers.
- Does this valve come with the coil? This part number (068F5035) is the valve body only. You must select a compatible AC or DC coil (e.g., Danfoss 10W or 12W series) based on your controller’s voltage requirements.
- What is the rated capacity? The AKV 15-1 has a rated capacity of 25 kW (7.1 TR) for R22 and approximately 18 kW (5.1 TR) for R404A/R507.
- Can I use this for ammonia (R717)? No, the AKV series is not compatible with ammonia. You should specify the AKVA 15 series for R717 applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
