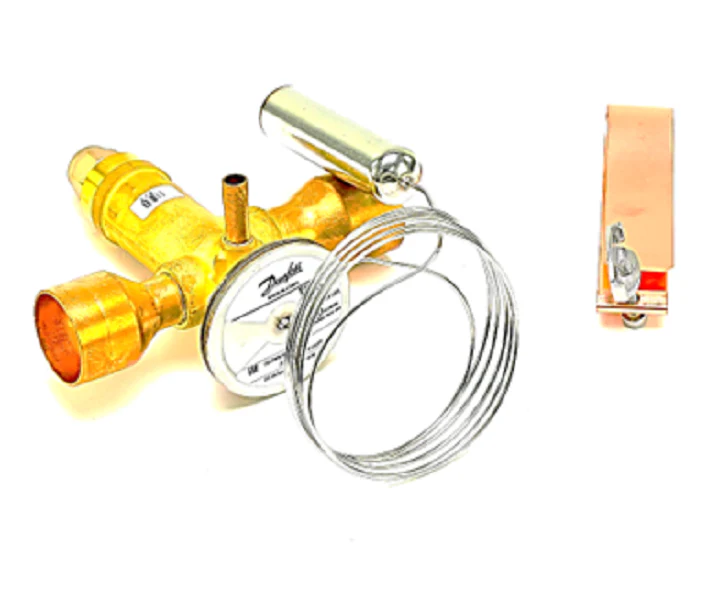

Danfoss 067N9284 Valve
The Danfoss 067N9284 is a professional-grade TGEL 20 thermal expansion valve engineered for high-capacity R410A refrigeration systems and commercial HVAC applications. Featuring a 23-ton nominal capacity, this externally equalized TXV utilizes a straight body configuration with 1 1/8" ODF solder connections for streamlined integration into heavy-duty liquid lines. The assembly includes a precision-machined number 20 orifice and a 60-inch capillary tube, providing necessary flexibility for remote bulb placement to ensure accurate superheat control. With a Maximum Operating Pressure (MOP) of 667 PSI, this valve is built for high-pressure environments, preventing compressor overload during startup or high-load conditions. The laser-welded stainless steel element provides consistent performance across varying ambient temperatures, making it a reliable choice for chiller maintenance and rooftop unit repairs requiring precise refrigerant metering.
Technical Performance Features
- High-capacity R410A metering rated for 23 tons.
- 1 1/8" ODT x 1 1/8" ODF copper connections for secure, leak-free brazing.
- Externally equalized 1/4" ODF line to compensate for evaporator pressure drops.
- Integrated MOP function at 667 PSI to protect the suction side from excessive pressure.
- Stainless steel power element and capillary tube for superior corrosion resistance.
Common Contractor Questions
Is the Danfoss TGEL 20 field-adjustable?
Yes, this valve features a standard adjustment spindle allowing technicians to fine-tune static superheat settings to match specific system requirements.
What are the benefits of the laser-welded diaphragm?
The laser-welding process used in Danfoss thermal expansion valves ensures a hermetic seal, extending the life of the power element and preventing charge migration.
Does this valve include the bulb mounting hardware?
Yes, the 067N9284 kit includes the necessary bulb strap to ensure proper thermal contact between the sensing bulb and the suction line.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
