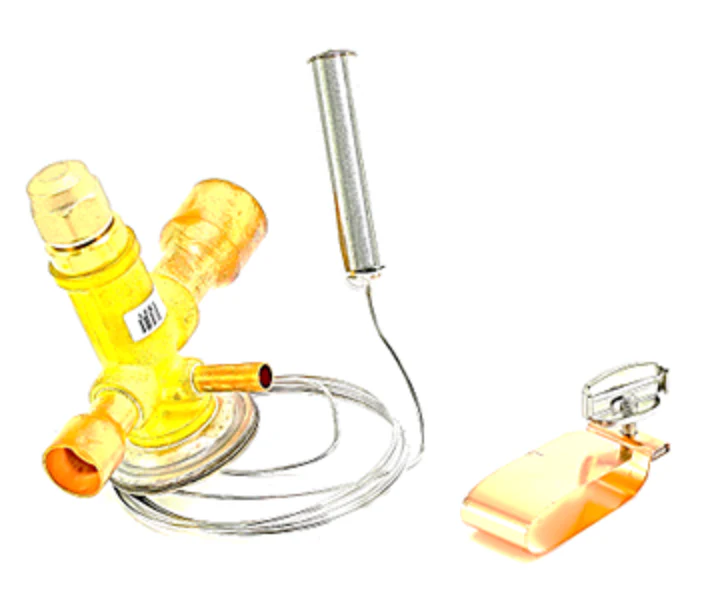

Danfoss 067N9206 Valve
The Danfoss 067N9206 Valve is a 9-ton R410A thermal expansion valve specifically engineered for high-demand commercial HVACR applications, including water chillers, heat pumps, and rooftop units. This Type TGEL 10 model features a balanced port design that ensures stable superheat control across varying head pressures and evaporator loads, effectively eliminating hunting. It is constructed with a durable brass body and a laser-welded stainless steel power element to maintain hermetic integrity in high-pressure environments up to a 667 PSI MOP.
For field installation, this valve utilizes 5/8" ODF x 7/8" ODF solder connections and a straight body configuration for streamlined piping. The externally equalized design via a 1/4" ODF connection allows for precise compensation for pressure drops across the evaporator coil. Equipped with a number 8 orifice and a 60" capillary tube, the 067N9206 provides the bi-flow capability required for modern heat pump cycles, ensuring peak efficiency in both heating and cooling modes while protecting the compressor from liquid slugging.
Key Benefits for HVACR Systems- Balanced Port Design: Stabilizes refrigerant flow during significant fluctuations in ambient temperature and system load.
- Bi-Flow Functionality: Optimized for heat pump applications, providing consistent performance in dual-directional flow cycles.
- High MOP Protection: The 667 PSI Maximum Operating Pressure charge safeguards the compressor motor against excessive evaporating pressure.
- Installation Versatility: Features a generous 60-inch capillary tube and high-grade bulb strap for flexible mounting on various suction line diameters.
- Corrosion Resistance: Stainless steel power element and laser-welded adjustment housing prevent external leaks and withstand harsh environments.
Is the Danfoss 067N9206 suitable for bi-flow heat pump applications?
Yes, the TGE series is specifically designed with bi-flow capability, making it an ideal choice for heat pumps where flow direction changes during the defrost cycle or mode switching.
What are the benefits of the external equalization on this 9-ton valve?
External equalization is critical for 9-ton systems to accurately sense the pressure at the evaporator outlet. This compensates for the inherent pressure drop in large coils, preventing the valve from starving the evaporator.
Can the superheat setting be adjusted on this model?
The TGEL 10 includes a static superheat adjustment spindle, allowing technicians to fine-tune the system performance to specific site conditions.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
