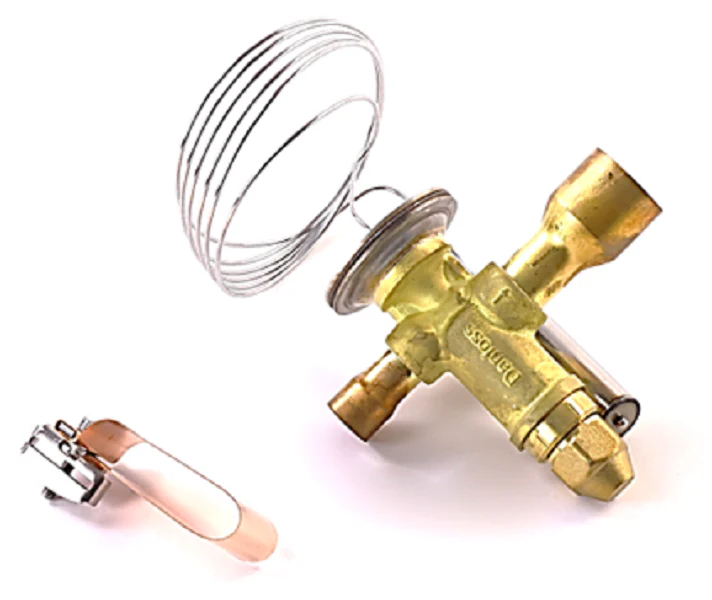

Danfoss 067N6166 Valve
The Danfoss 067N6166 is a professional-grade TGES 10 series thermal expansion valve engineered for mid-to-high capacity refrigeration and air conditioning systems. Designed specifically for R404A and R507 refrigerants, this valve features a 5-ton nominal capacity with an integrated number 8 orifice. The stainless steel power element and laser-welded construction ensure long-term durability against vibration and thermal stress. The straight body configuration utilizes 1/2" ODF inlet and 7/8" ODF outlet connections for streamlined brazing. This model is externally equalized with a 1/4" ODF connection, allowing for precise superheat control across varying evaporator pressure drops. Rated for a Maximum Operating Pressure (MOP) of 667 PSI, it handles high-pressure environments common in commercial refrigeration. The included 60-inch capillary tube provides flexibility for bulb placement, and the stainless steel bulb strap ensures optimal thermal contact for accurate sensing. Field-adjustable superheat settings allow technicians to fine-tune system performance for maximum efficiency.
Key Technical Benefits:- Bi-flow capability allows for versatile installation in heat pump applications or complex refrigeration circuits.
- Integrated orifice design simplifies inventory management and minimizes potential leak points compared to modular valves.
- High MOP rating protects the compressor by limiting suction pressure during start-up or after defrost cycles.
- TIG welded power element provides superior hermetic sealing and resistance to corrosive environments.
- ODF solder connections facilitate a secure, leak-proof installation using standard brazing techniques.
What is the primary application for the Danfoss TGES 10 series?
The TGES 10 is designed for high-capacity commercial refrigeration systems where precise superheat control and durability are required, particularly in walk-in coolers and industrial evaporators.
Can this valve be field-adjusted?
Yes, the superheat is adjustable. Turning the adjustment spindle clockwise increases superheat, while turning it counter-clockwise decreases it to optimize evaporator coil utilization.
Is the bulb strap included with the 067N6166?
Yes, a heavy-duty stainless steel bulb strap is included to ensure the sensing bulb maintains consistent thermal contact with the suction line.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $160.60
-65%$160.60
$56.21Danfoss 067N6166 Valve
The Danfoss 067N6166 is a professional-grade TGES 10 series thermal expansion valve engineered for mid-to-high capacity refrigeration and air conditioning systems. Designed specifically for R404A and R507 refrigerants, this valve features a 5-ton nominal capacity with an integrated number 8 orifice. The stainless steel power element and laser-welded construction ensure long-term durability against vibration and thermal stress. The straight body configuration utilizes 1/2" ODF inlet and 7/8" ODF outlet connections for streamlined brazing. This model is externally equalized with a 1/4" ODF connection, allowing for precise superheat control across varying evaporator pressure drops. Rated for a Maximum Operating Pressure (MOP) of 667 PSI, it handles high-pressure environments common in commercial refrigeration. The included 60-inch capillary tube provides flexibility for bulb placement, and the stainless steel bulb strap ensures optimal thermal contact for accurate sensing. Field-adjustable superheat settings allow technicians to fine-tune system performance for maximum efficiency.
Key Technical Benefits:- Bi-flow capability allows for versatile installation in heat pump applications or complex refrigeration circuits.
- Integrated orifice design simplifies inventory management and minimizes potential leak points compared to modular valves.
- High MOP rating protects the compressor by limiting suction pressure during start-up or after defrost cycles.
- TIG welded power element provides superior hermetic sealing and resistance to corrosive environments.
- ODF solder connections facilitate a secure, leak-proof installation using standard brazing techniques.
What is the primary application for the Danfoss TGES 10 series?
The TGES 10 is designed for high-capacity commercial refrigeration systems where precise superheat control and durability are required, particularly in walk-in coolers and industrial evaporators.
Can this valve be field-adjusted?
Yes, the superheat is adjustable. Turning the adjustment spindle clockwise increases superheat, while turning it counter-clockwise decreases it to optimize evaporator coil utilization.
Is the bulb strap included with the 067N6166?
Yes, a heavy-duty stainless steel bulb strap is included to ensure the sensing bulb maintains consistent thermal contact with the suction line.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
