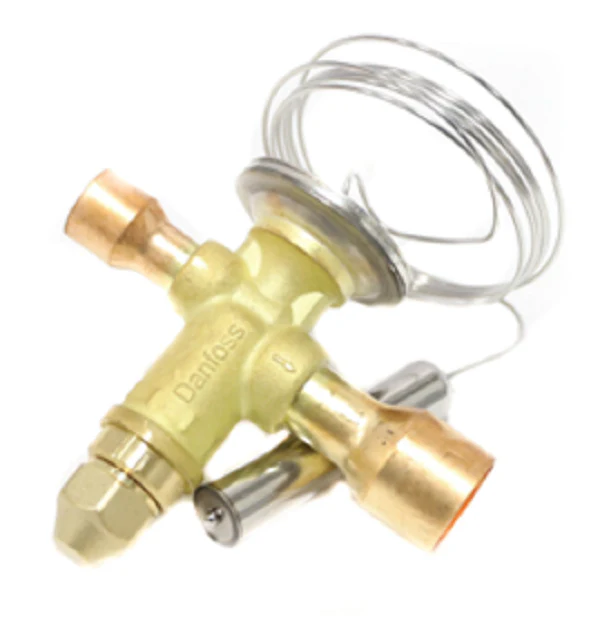

Danfoss 067N6154 Valve
The Danfoss 067N6154 Valve is a high-performance TGES 10 series thermal expansion valve designed for precision refrigerant flow control in high-tonnage commercial applications. This externally equalized TXV features a 7.5-ton capacity optimized for R404A and R507 systems. Engineered with a straight-through body, it uses 5/8" ODF inlet and 7/8" ODF outlet connections for seamless brazing into standard line sets. The integrated number 11 orifice provides stable superheat control across varying head pressures, while the 60-inch capillary tube allows for flexible bulb placement on the suction line. With a Maximum Operating Pressure (MOP) of 667 PSI, this valve ensures compressor protection by limiting evaporator pressure during pull-down or high-load conditions. The stainless steel power element and laser-welded construction provide superior durability against vibration and thermal cycling in demanding environments.
- Optimized Charge Distribution: The thermal expansion valve R404A design utilizes a dedicated MOP 667 PSI setting to prevent motor overload.
- Robust Connectivity: 5/8" x 7/8" ODF connections ensure leak-proof integration in high-capacity refrigeration circuits.
- Precise Superheat Management: The Danfoss TGES 10 configuration with a bulb strap and externally equalized port compensates for pressure drops across the evaporator.
- Field Reliability: High-grade stainless steel capillary and bulb stand up to corrosive environments and mechanical stress.
What are the benefits of using a Danfoss TGES 10 with MOP?
The Maximum Operating Pressure feature is critical for protecting the compressor motor from excessive suction pressure during startup or after a defrost cycle, ensuring the system operates within its design envelope.
Can I use the 067N6154 in an R507 system?
Yes, this Danfoss expansion valve is fully compatible with both R404A and R507 refrigerants, maintaining consistent 7 1/2 ton capacity performance for either medium-to-low temperature application.
How do I ensure accurate sensing with the bulb strap?
For 7/8" suction lines, mount the bulb at the 4 o'clock or 8 o'clock position and secure it tightly with the provided bulb strap to ensure maximum thermal contact and prevent hunting.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $160.80
-65%$160.80
$56.28Danfoss 067N6154 Valve
The Danfoss 067N6154 Valve is a high-performance TGES 10 series thermal expansion valve designed for precision refrigerant flow control in high-tonnage commercial applications. This externally equalized TXV features a 7.5-ton capacity optimized for R404A and R507 systems. Engineered with a straight-through body, it uses 5/8" ODF inlet and 7/8" ODF outlet connections for seamless brazing into standard line sets. The integrated number 11 orifice provides stable superheat control across varying head pressures, while the 60-inch capillary tube allows for flexible bulb placement on the suction line. With a Maximum Operating Pressure (MOP) of 667 PSI, this valve ensures compressor protection by limiting evaporator pressure during pull-down or high-load conditions. The stainless steel power element and laser-welded construction provide superior durability against vibration and thermal cycling in demanding environments.
- Optimized Charge Distribution: The thermal expansion valve R404A design utilizes a dedicated MOP 667 PSI setting to prevent motor overload.
- Robust Connectivity: 5/8" x 7/8" ODF connections ensure leak-proof integration in high-capacity refrigeration circuits.
- Precise Superheat Management: The Danfoss TGES 10 configuration with a bulb strap and externally equalized port compensates for pressure drops across the evaporator.
- Field Reliability: High-grade stainless steel capillary and bulb stand up to corrosive environments and mechanical stress.
What are the benefits of using a Danfoss TGES 10 with MOP?
The Maximum Operating Pressure feature is critical for protecting the compressor motor from excessive suction pressure during startup or after a defrost cycle, ensuring the system operates within its design envelope.
Can I use the 067N6154 in an R507 system?
Yes, this Danfoss expansion valve is fully compatible with both R404A and R507 refrigerants, maintaining consistent 7 1/2 ton capacity performance for either medium-to-low temperature application.
How do I ensure accurate sensing with the bulb strap?
For 7/8" suction lines, mount the bulb at the 4 o'clock or 8 o'clock position and secure it tightly with the provided bulb strap to ensure maximum thermal contact and prevent hunting.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
