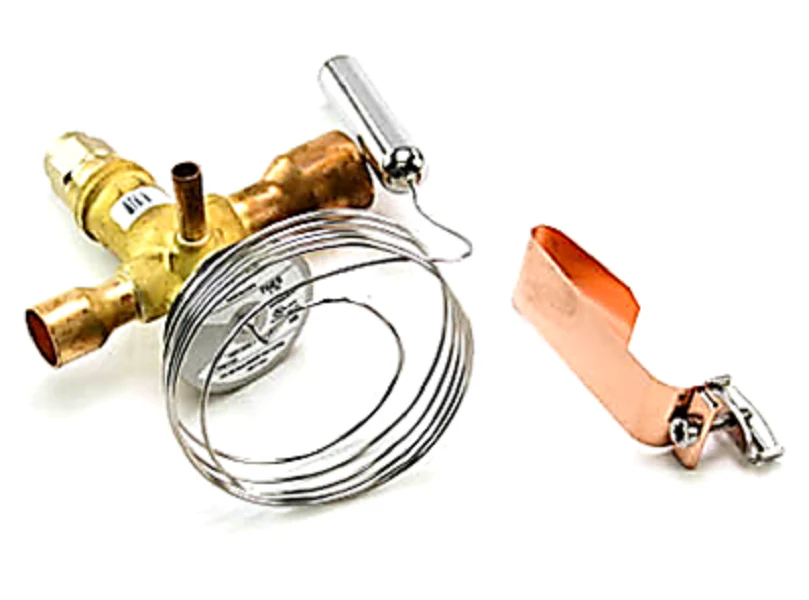

Danfoss 067N6150 Valve
The Danfoss 067N6150 (TGES 10) is an externally equalized thermostatic expansion valve engineered for mid-to-high capacity refrigeration and air conditioning systems. Designed for R404A and R507 refrigerants, this valve features a 5-ton nominal capacity and a straightway body with 5/8" ODF inlet and 7/8" ODF outlet connections. The integrated number 8 orifice ensures precise superheat control, while the stainless steel power element and laser-welded diaphragm provide superior durability under variable thermal loads. With a Max Operating Pressure (MOP) of 667 PSI and a 60-inch capillary tube, this TXV allows for flexible bulb placement, optimizing evaporator efficiency in commercial cooling applications. The hermetic design eliminates the risk of external leakage, making it a reliable drop-in solution for contractors focused on system uptime and consistent mass flow regulation.
Key Benefits for Technicians- Optimized Mass Flow: Specifically calibrated for R404A/R507 systems to maintain precise superheat across varying suction pressures.
- Hermetic Construction: The stainless steel power element and TIG-welded assembly minimize refrigerant loss and prevent moisture ingress.
- Reliable Superheat Control: Externally equalized design compensates for pressure drops across large evaporators or distributors.
- Installation Flexibility: The straightway body and copper ODF connections facilitate clean brazing and easier integration into existing piping layouts.
- Durable Capillary Tube: A length of 60 inches provides adequate reach for optimal sensing bulb placement on suction lines.
Is the Danfoss 067N6150 compatible with R448A or R449A?
While originally designed for R404A/R507, the TGES 10 series is frequently used with newer HFO blends. However, superheat settings must be verified and adjusted in the field to account for pressure-temperature glides.
Does this valve require a separate orifice?
No, this is a hermetic valve assembly with a fixed size 8 orifice pre-installed, ensuring factory-set precision for 5-ton applications.
What is the purpose of the MOP configuration?
The 667 PSI Max Operating Pressure protects the compressor motor by limiting suction pressure during start-up or after defrost cycles, preventing overload.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
