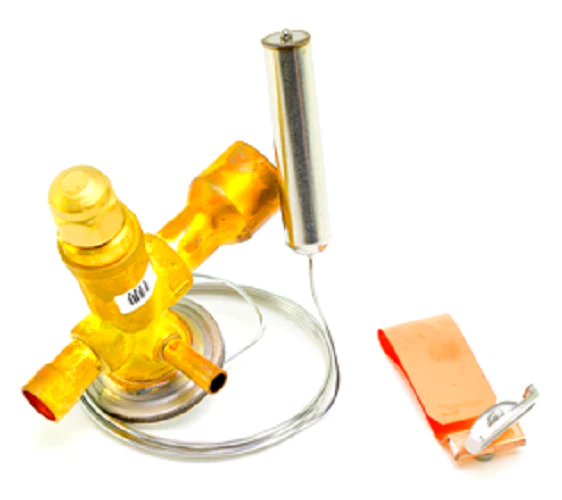

Danfoss 067N3152 Expansion Valve
The Danfoss 067N3152 is a professional-grade TGEL 10 thermostatic expansion valve engineered for high-pressure R410A refrigerant applications, specifically within 4.5 ton HVAC systems. Featuring a balanced port design, this externally equalized TXV ensures stable superheat control across varying head pressures, making it an ideal choice for both air conditioning and heat pump units. The valve operates with a straight body configuration, utilizing 1/2 inch ODF inlet and 7/8 inch ODF outlet copper solder connections for a hermetic, leak-proof fit. With a 60 inch capillary tube and a dedicated number 4 orifice, this component provides the precise liquid injection required to maintain evaporator efficiency. Rated for a Maximum Operating Pressure (MOP) of 667 PSI, the 067N3152 is built to withstand the rigorous demands of modern residential and commercial cooling equipment without compromising on refrigerant flow regulation.
Key Benefits:- Balanced Port Design: Minimizes the influence of condensing pressure fluctuations on the expansion valve setting for consistent performance.
- Enhanced Durability: Constructed with a robust brass body and laser-welded stainless steel power element to handle high-pressure R410A environments.
- External Equalization: Optimizes coil distribution and compensates for pressure drops across the evaporator and distributor.
- Bi-Flow Capability: Designed to function efficiently in both cooling and heating modes, perfect for modern heat pump applications.
- Installation Ready: Includes a stainless steel bulb strap to ensure thermal contact and accurate bulb response on the suction line.
What is the primary application for the Danfoss TGEL 10 067N3152?
This thermal expansion valve is specifically designed for 4.5 ton R410A residential and commercial air conditioning systems and heat pumps requiring external equalization and a balanced port to handle variations in operating conditions.
Does this TXV support R32 refrigerant?
Yes, the TGE series, including the Danfoss 067N3152, is technically compatible with both R410A and R32 refrigerants, provided the system pressures and capacity requirements align with the 4.5 TR (16 kW) rating.
Is the superheat adjustable on this model?
Yes, this Danfoss expansion valve features an adjustable static superheat (SS) setting, factory-preset at 7.2°F (4°C), allowing for fine-tuning based on specific field conditions and evaporator requirements.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
