Danfoss 067N2007 Valve

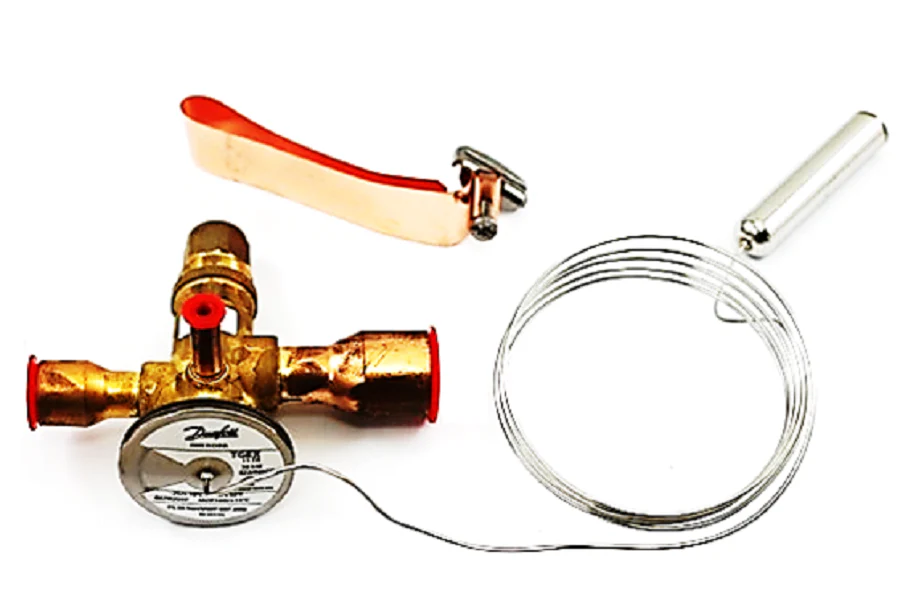

The Danfoss 067N2007 (Type TGEX 10) is an externally equalized thermal expansion valve designed for high-capacity HVAC refrigeration systems utilizing R22 or R407C refrigerant. Built for durability in demanding commercial environments, this straight body TXV features 5/8" ODF inlet and 7/8" ODF outlet solder connections. It is equipped with an integrated number 11 orifice, providing a nominal capacity of 11 tons to ensure precise superheat control and evaporator efficiency. The 60-inch stainless steel capillary tube and copper bulb provide rapid thermal response, while the Maximum Operating Pressure (MOP) of 667 PSI protects the compressor against overload during startup or high-load conditions. The balanced port design minimizes influence from condensing pressure variations, making it a reliable OEM replacement valve for large-scale air conditioning units and heat pump applications where maintaining stable suction pressure is critical for system longevity.
- Optimized Superheat Control: Thermostatic element provides consistent performance across wide temperature ranges in R22/R407C systems.
- Robust Construction: Stainless steel power element and laser-welded diaphragm extend the service life of the expansion device.
- Installation Ready: Includes a factory-sized number 11 orifice and bulb strap for secure thermal contact on the suction line.
- High Pressure Rating: 667 PSI MOP prevents motor overload by limiting evaporator pressure during pull-down.
How do I install the Danfoss TGEX 10 expansion valve?
Ensure the TGEX 10 valve is oriented correctly with the 5/8" x 7/8" ODF lines. Use a wet rag when brazing to protect the internal components. Mount the sensing bulb at the 4 or 8 o'clock position on horizontal suction lines using the provided strap.
What is the benefit of an externally equalized TXV?
An externally equalized expansion valve like the 067N2007 compensates for pressure drops across the evaporator, ensuring accurate superheat measurement and preventing the coil from starving or flooding.
Can I use this TXV for R410A applications?
No, the Danfoss 067N2007 is calibrated specifically for the pressure-temperature characteristics of R22 and R407C. Using it with incompatible refrigerants will result in improper flow and potential system damage.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $170.46
-65%$170.46
$59.66Danfoss 067N2007 Valve
The Danfoss 067N2007 (Type TGEX 10) is an externally equalized thermal expansion valve designed for high-capacity HVAC refrigeration systems utilizing R22 or R407C refrigerant. Built for durability in demanding commercial environments, this straight body TXV features 5/8" ODF inlet and 7/8" ODF outlet solder connections. It is equipped with an integrated number 11 orifice, providing a nominal capacity of 11 tons to ensure precise superheat control and evaporator efficiency. The 60-inch stainless steel capillary tube and copper bulb provide rapid thermal response, while the Maximum Operating Pressure (MOP) of 667 PSI protects the compressor against overload during startup or high-load conditions. The balanced port design minimizes influence from condensing pressure variations, making it a reliable OEM replacement valve for large-scale air conditioning units and heat pump applications where maintaining stable suction pressure is critical for system longevity.
- Optimized Superheat Control: Thermostatic element provides consistent performance across wide temperature ranges in R22/R407C systems.
- Robust Construction: Stainless steel power element and laser-welded diaphragm extend the service life of the expansion device.
- Installation Ready: Includes a factory-sized number 11 orifice and bulb strap for secure thermal contact on the suction line.
- High Pressure Rating: 667 PSI MOP prevents motor overload by limiting evaporator pressure during pull-down.
How do I install the Danfoss TGEX 10 expansion valve?
Ensure the TGEX 10 valve is oriented correctly with the 5/8" x 7/8" ODF lines. Use a wet rag when brazing to protect the internal components. Mount the sensing bulb at the 4 or 8 o'clock position on horizontal suction lines using the provided strap.
What is the benefit of an externally equalized TXV?
An externally equalized expansion valve like the 067N2007 compensates for pressure drops across the evaporator, ensuring accurate superheat measurement and preventing the coil from starving or flooding.
Can I use this TXV for R410A applications?
No, the Danfoss 067N2007 is calibrated specifically for the pressure-temperature characteristics of R22 and R407C. Using it with incompatible refrigerants will result in improper flow and potential system damage.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
