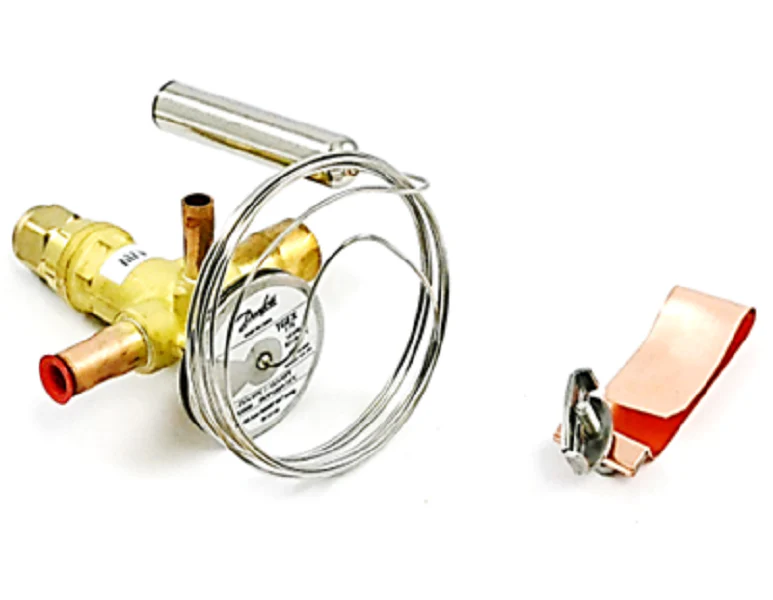

Danfoss 067N2000 Valve
The Danfoss 067N2000 is an industrial-grade Type TGEX 10 thermostatic expansion valve designed for high-performance HVACR refrigeration systems. Engineered with a balanced port design, this 3-ton TXV provides precise superheat control across a wide range of operating conditions, making it an essential component for R22 expansion valve replacements or R407C thermal expansion valve retrofits. The externally equalized configuration ensures accurate refrigerant metering by sensing pressure directly at the evaporator outlet, compensating for any internal pressure drops. Featuring a 3/8" ODF x 5/8" ODF straight body connection and a 60-inch stainless steel capillary tube, this Danfoss TGE valve offers the durability required for demanding environments. With a Maximum Operating Pressure (MOP) of 667 PSI, it protects the compressor against overload during start-up or high-load periods. The included number 3 orifice and patented bulb strap guarantee optimal thermal contact for reliable system modulation.
Key Benefits for the Technician- Biflow Capability: Designed for versatile application in both cooling and heat pump systems, allowing for efficient expansion in both directions.
- Hermetic Design: Laser-welded stainless steel power element and capillary tube provide superior protection against leaks and environmental corrosion.
- Adjustable Superheat: Features a setting spindle for fine-tuning static superheat (SS) between 0K and 8K to meet specific application requirements.
- Stable Regulation: The balanced port technology reduces the impact of condensing pressure fluctuations on valve performance.
- High Pressure Tolerance: Rated for a maximum working pressure of 46 bar (667 psig), ensuring compatibility with modern high-pressure system cycles.
Is the Danfoss 067N2000 compatible with R407C systems?
Yes, this valve is specifically calibrated for use with both R22 and R407C refrigerants, making it a versatile choice for direct-expansion systems using these fluids.
What is the purpose of the MOP 667 PSI rating?
The Maximum Operating Pressure (MOP) function limits the suction pressure to protect the compressor motor from overloading during high-temperature pull-down or after defrost cycles.
Does this TXV require an external equalizer line?
Yes, as an externally equalized valve, it must be connected to the suction line near the sensing bulb to accurately measure evaporator pressure and maintain correct superheat levels.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
