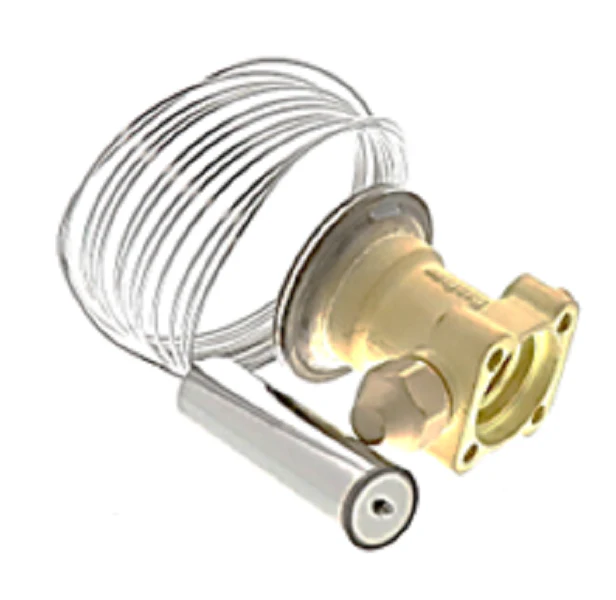

Danfoss 067B3380 Element
The Danfoss 067B3380 is a high-performance TES 5 thermostatic expansion valve element specifically engineered for refrigeration systems utilizing R404A/R507A refrigerants. Designed for the TE 5 series, this stainless steel power element features an externally equalized 1/4 inch ODF connection and a 3-meter (118-inch) capillary tube, providing the durability and flexibility required for demanding commercial environments. With an operating temperature range of -40°C to +10°C (-40°F to +50°F), this "N" range element ensures precise superheat control without MOP (Maximum Operating Pressure) functionality.
Built using advanced laser welding technology, the 067B3380 element provides exceptional hermetic integrity and vibration resistance. For technicians performing HVACR refrigeration repair or system optimization, this exchangeable power element allows for the replacement of the diaphragm and sensing bulb without removing the entire valve body from the line. This modularity minimizes downtime in chiller systems, walk-in freezers, and air conditioning units. Ensure proper bulb placement and insulation according to Danfoss expansion valve guidelines to maintain optimal thermal response and prevent liquid floodback.
Key Benefits
- Precision Superheat Control: Maintains consistent evaporator efficiency across a wide range of load conditions.
- Industrial Durability: The stainless steel power element and capillary tube are laser-welded for longevity and corrosion resistance.
- Modular Maintenance: Exchangeable design allows for quick service without brazing or opening the refrigerant circuit's main connections.
- Application Versatility: Perfectly suited for R404A systems in cold rooms, supermarkets, and process cooling.
- External Equalization: Facilitates accurate pressure sensing at the evaporator outlet, compensating for pressure drops across the distributor and coil.
Common Questions
- Is the 067B3380 compatible with R134a or R407C? No, this specific element is charged and calibrated exclusively for R404A and R507A refrigerants. Using it with other gases will result in improper superheat settings.
- What is the maximum working pressure? This element is rated for a Maximum Working Pressure (MWP) of 28 bar (400 psig), making it suitable for standard high-pressure refrigeration cycles.
- Does this include the orifice? No, this is the thermostatic element only. The orifice assembly must be selected separately based on your specific capacity requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
