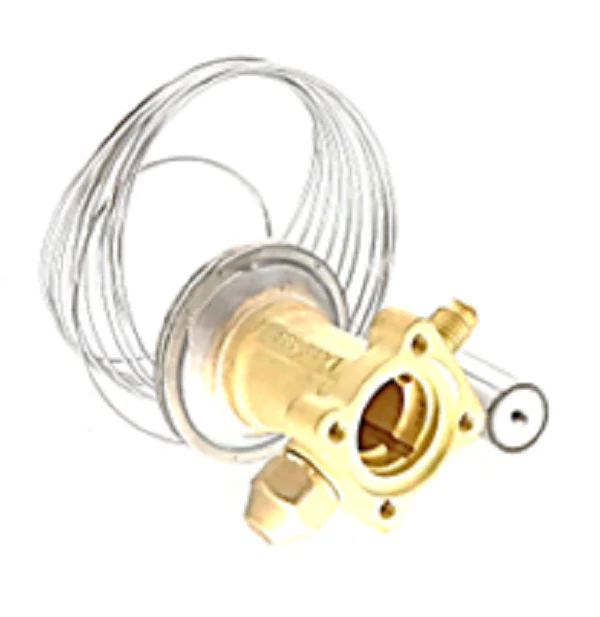

Danfoss 067B3347 Thermostatic Element
The Danfoss 067B3347 Thermostatic Element is a critical replacement power assembly designed for the TE 12 Series expansion valves. Engineered for high-demand commercial refrigeration and air conditioning systems, this stainless steel element utilizes laser-welded technology to ensure structural integrity under fluctuating pressures. It is specifically calibrated for R404A and R507A refrigerants, providing precise superheat control to protect the compressor and optimize evaporator efficiency. With an N-range classification, this unit operates reliably within a temperature envelope of -40°C to +10°C (-40°F to +50°F). The 118-inch (3000 mm) capillary tube offers sufficient length for versatile bulb placement, while the 1/4-inch flare externally equalized connection compensates for pressure drops across the evaporator. Designed as part of the Danfoss parts program, this TES 12 element allows for field-serviceable repairs without requiring a full valve body replacement, reducing downtime and maintenance costs for industrial chillers and cold storage walk-ins. This version is supplied without MOP (Maximum Operating Pressure) protection, making it suitable for systems where rapid pull-down or high-load conditions are managed by other control parameters.
Key Benefits- Precise Superheat Regulation: Maintains optimal refrigerant flow to prevent liquid slugging and maximize heat transfer.
- Durable Construction: Features laser-welded stainless steel housing for superior resistance to vibration and thermal stress.
- Extended Reach: The 3-meter capillary tube simplifies installation in complex evaporator configurations.
- Field Interchangeability: Part of the TE 12 parts program, allowing technicians to replace the power element while keeping the existing valve body and orifice in place.
- High Pressure Rating: Rated for a maximum working pressure of 400 psig (28 bar), ensuring compatibility with modern high-pressure refrigeration cycles.
Which refrigerants are compatible with the 067B3347 element?
This specific element is designed exclusively for R404A and R507A systems. Using it with incompatible refrigerants will result in incorrect superheat settings and potential system failure.
Does this element include a MOP (Maximum Operating Pressure) charge?
No, the 067B3347 is a standard Range N element without MOP. It should be used in applications where the compressor motor is capable of handling the suction pressure during start-up or pull-down.
Can I use this on a TE 5 or TE 20 valve body?
No, this power element is sized specifically for the TE 12 series. Elements across the TE series are not interchangeable between different body sizes (TE 5, 12, 20, 55).
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $158.83
-65%$158.83
$55.59Danfoss 067B3347 Thermostatic Element
The Danfoss 067B3347 Thermostatic Element is a critical replacement power assembly designed for the TE 12 Series expansion valves. Engineered for high-demand commercial refrigeration and air conditioning systems, this stainless steel element utilizes laser-welded technology to ensure structural integrity under fluctuating pressures. It is specifically calibrated for R404A and R507A refrigerants, providing precise superheat control to protect the compressor and optimize evaporator efficiency. With an N-range classification, this unit operates reliably within a temperature envelope of -40°C to +10°C (-40°F to +50°F). The 118-inch (3000 mm) capillary tube offers sufficient length for versatile bulb placement, while the 1/4-inch flare externally equalized connection compensates for pressure drops across the evaporator. Designed as part of the Danfoss parts program, this TES 12 element allows for field-serviceable repairs without requiring a full valve body replacement, reducing downtime and maintenance costs for industrial chillers and cold storage walk-ins. This version is supplied without MOP (Maximum Operating Pressure) protection, making it suitable for systems where rapid pull-down or high-load conditions are managed by other control parameters.
Key Benefits- Precise Superheat Regulation: Maintains optimal refrigerant flow to prevent liquid slugging and maximize heat transfer.
- Durable Construction: Features laser-welded stainless steel housing for superior resistance to vibration and thermal stress.
- Extended Reach: The 3-meter capillary tube simplifies installation in complex evaporator configurations.
- Field Interchangeability: Part of the TE 12 parts program, allowing technicians to replace the power element while keeping the existing valve body and orifice in place.
- High Pressure Rating: Rated for a maximum working pressure of 400 psig (28 bar), ensuring compatibility with modern high-pressure refrigeration cycles.
Which refrigerants are compatible with the 067B3347 element?
This specific element is designed exclusively for R404A and R507A systems. Using it with incompatible refrigerants will result in incorrect superheat settings and potential system failure.
Does this element include a MOP (Maximum Operating Pressure) charge?
No, the 067B3347 is a standard Range N element without MOP. It should be used in applications where the compressor motor is capable of handling the suction pressure during start-up or pull-down.
Can I use this on a TE 5 or TE 20 valve body?
No, this power element is sized specifically for the TE 12 series. Elements across the TE series are not interchangeable between different body sizes (TE 5, 12, 20, 55).
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
