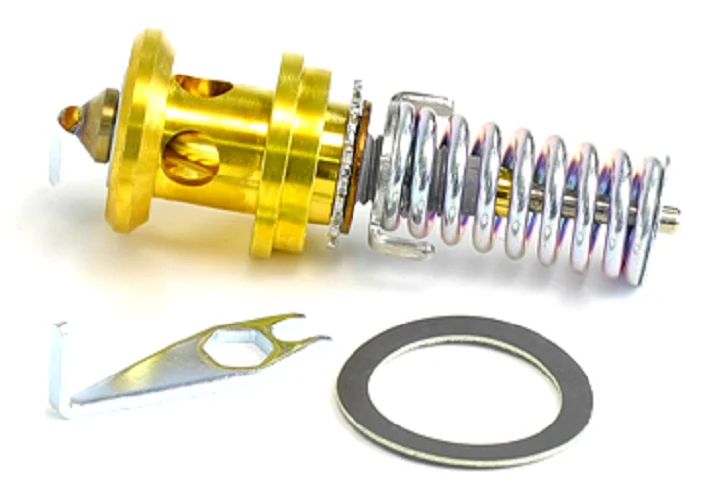

Danfoss 067B2709 Orifice
The Danfoss 067B2709 is a size No. 6 orifice assembly specifically engineered for use with TE 12 thermostatic expansion valves. Designed to provide precise refrigerant metering in medium to large-scale commercial refrigeration systems, this component ensures optimal evaporator feed across varying load conditions. It is compatible with a wide range of refrigerants, including R404A, R507, R134a, R407C, and R22, making it a versatile choice for field replacements and new installations. The assembly features a high-grade stainless steel filter and precision-machined internals to prevent debris infiltration and maintain consistent mass flow. When seating this orifice, ensure the TE12 power head and valve body are clean to prevent bypass leakage. This orifice is critical for maintaining proper superheat control and protecting the compressor from liquid slugging. Its robust construction facilitates reliable performance in low, medium, and high-temperature applications where expansion valve capacity must be matched perfectly to the system's BTU requirements.
Key Benefits for Technicians- Interchangeable Design: Specifically calibrated for the TE 12 valve series to simplify field service and inventory management.
- Broad Refrigerant Compatibility: Rated for high-pressure refrigerants, ensuring stable mass flow rates across multiple gas types.
- Integrated Strainer: Includes a fine-mesh filter to protect the valve seat from copper shavings and system contaminants.
- Precision Metering: Optimized for accurate thermostatic expansion valve modulation, reducing hunting and improving evaporator efficiency.
- Durable Construction: Built to withstand thermal cycling and high-vibration environments typical of commercial condensing units.
What is the nominal capacity of the TE12 No. 6 orifice?
Capacity varies based on the refrigerant and evaporating temperature; for instance, with R404A at traditional commercial conditions, it handles significantly higher loads than smaller series Danfoss orifices.
Does this orifice include the filter and gasket?
Yes, the 067B2709 assembly includes the orifice insert and the necessary filter to ensure the TXV valve remains clear of debris.
Can this orifice be used in a TE 5 or TE 20 valve body?
No, this component is part of the TE 12 orifice series and is only compatible with TE 12 valve bodies to ensure proper mechanical fit and flow characteristics.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
