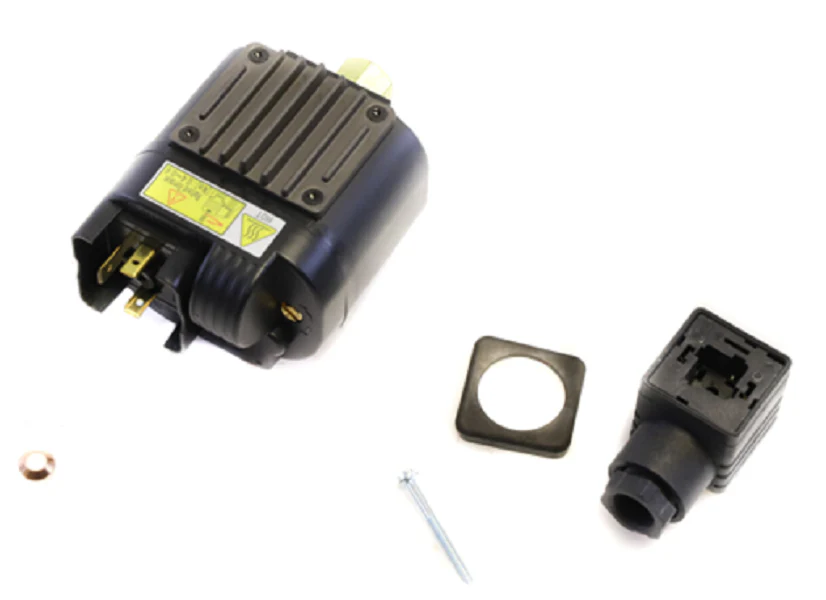

Danfoss 061H3140 Controller
The Danfoss 061H3140 XGE-4C fan speed controller is a compact, high-performance pressure-actuated solution designed for HVACR condenser fan control. Engineered specifically for R410A applications, this electronic speed regulator utilizes a reliable bellows sensing element to modulate motor speed based on discharge pressure, maintaining stable condensing temperatures throughout variable ambient conditions. The XGE series fan speed control features a robust triac output, eliminating the need for complex external wiring and ensuring a streamlined installation for contractors and OEMs. With an adjustable range of 10 to 25 bar and a factory setting of 19 bar, the Danfoss 061H3140 provides precise head pressure control to prevent evaporator coil freezing and ensures efficient liquid line subcooling. Its IP65-rated housing makes it suitable for demanding rooftop or outdoor environments where moisture and debris are prevalent.
Key Benefits for Technicians- Reduced Maintenance: The Danfoss 061H3140 eliminates the mechanical wear associated with cycling fans on and off, extending the lifespan of the motor and contactors.
- Direct Mount Connectivity: Simplifies the HVACR system layout by mounting directly onto the pressure port, reducing potential leak points compared to capillary-style controls.
- Stable System Pressures: Maintains consistent head pressure during low-ambient operation, ensuring reliable expansion valve performance and thermal stability.
- Efficient Power Management: Optimizes current draw by modulating voltage to the fan motor, reducing operational noise and energy consumption.
How do I adjust the pressure setpoint on the Danfoss XGE-4C?
The setpoint is adjusted via the internal screw located under the protective cap. Turn clockwise to increase the pressure setting and counter-clockwise to decrease it, allowing for fine-tuned condenser pressure regulation.
Is the Danfoss 061H3140 compatible with EC motors?
No, this specific model is designed for use with phase-controllable AC motors. For EC motor applications, a 0-10V signal controller is generally required.
Can this controller be used with flammable refrigerants?
The XGE-4C controller is rated for standard HFCs and HCFCs including R410A and R407C. Always verify the specific refrigerant compatibility rating on the nameplate before installing in A2L or A3 systems.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
