Danfoss 061F7526 Switch

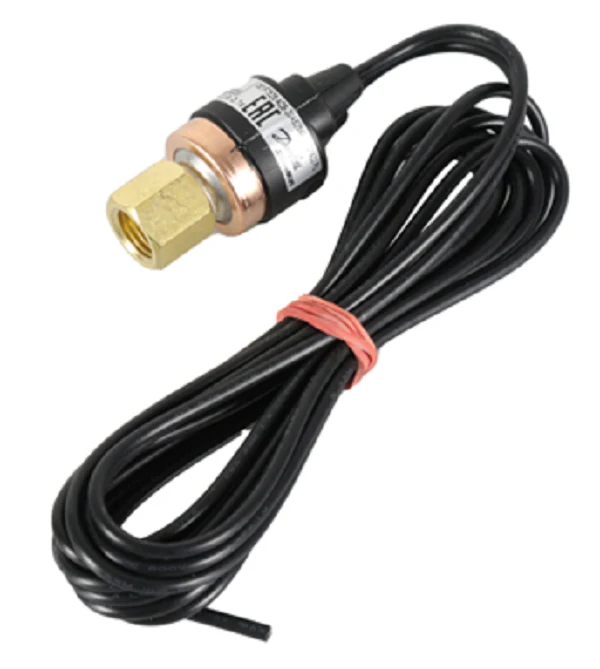

The Danfoss 061F7526 is a professional-grade ACB cartridge pressure switch engineered for critical low-pressure monitoring in HVAC and commercial refrigeration systems. This SPST (Single Pole Single Throw) control features a Normally Open (N/O) contact configuration, specifically calibrated for a cut-out pressure of 25 PSI and a cut-in (reset) pressure of 40 PSI. Built to withstand demanding environments, it maintains an IP65 enclosure rating and operates effectively within an ambient temperature range of -20°F to 185°F. The unit comes equipped with a 1/4 inch female flare pressure connection and a 59-inch AWG18 cable for straightforward electrical integration. Compatible with a broad range of high-pressure refrigerants including R410A, R134a, and R404A, this Danfoss ACB series switch ensures precise, repeatable performance for compressor protection and fan cycling applications. Its compact, hot-melt sealed housing provides superior resistance to moisture and vibration, making it a reliable choice for field replacements or new installations.
Key Benefits- Precise Pressure Regulation: Fixed settings at 25/40 PSI eliminate the risk of field tampering and ensure consistent system protection.
- High Environmental Resistance: The IP65 rated housing protects internal contacts from dust and low-pressure water jets.
- Versatile Refrigerant Compatibility: Suitable for use with modern refrigerants such as R410A, R448A, and R452A.
- Simplified Installation: Features a standard 1/4" flare female mounting and pre-wired 1.5m cable to reduce labor time.
- Automatic Reset: Facilitates seamless system recovery once pressures return to the 40 PSI cut-in threshold.
What is the difference between N/O and N/C in this application?
This N/O (Normally Open) switch remains open until the pressure rises to the 40 PSI cut-in point. In a typical low-pressure cutout scenario, it is used to ensure the circuit closes only when sufficient system pressure is present.
Can this switch be used on the high-pressure side of the system?
No, this specific model is designed for low-pressure applications. With a 25 PSI cut-out and 40 PSI cut-in, it is intended to prevent compressor operation during low-charge or low-ambient conditions.
Is this switch compatible with POE or PVE oils?
Yes, the internal materials are compatible with standard refrigeration lubricants, including those used in R410A and R134a systems.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
