Danfoss 060L202366 Control

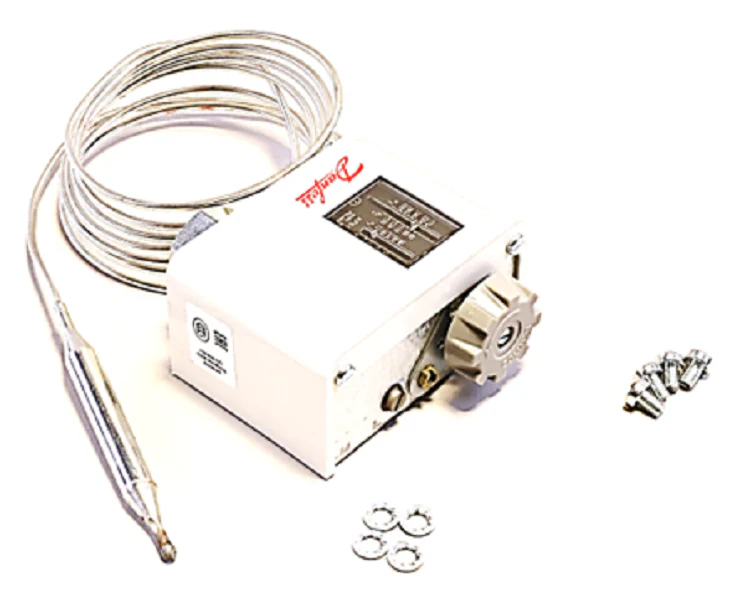

The Danfoss 060L202366 (KP81) Temperature Control is a high-limit heavy-duty thermostat designed for demanding commercial HVACR and industrial applications. This vapor-charged sensor operates with a temperature range of 175°F to 300°F (80°C to 150°C), making it an essential component for high-temperature protection in steam systems or hot water boilers. Featuring a SPDT contact system, the KP81 facilitates both system cycling and alarm signaling through a single-pole double-throw switch configuration. The unit is equipped with a Manual Reset (Max) function, ensuring that the system remains locked out following a high-temperature event until a technician performs a physical inspection. With a 2-meter (approx. 80-inch) capillary tube and a 1/2-inch NPT connection, this Danfoss KP series controller provides reliable thermal protection and precise setpoint adjustment. Its robust construction is rated for IP44 (when mounted with a top plate), ensuring durability in mechanical rooms and high-ambient environments.
Product Specifications & Key Benefits:- Temperature Range: 175°F to 300°F (80°C to 150°C) suited for high-limit cut-out.
- Reset Function: Manual Max Reset for critical safety and overheat protection.
- Contact Type: High-load SPDT switch provides reliable electrical switching for fans, pumps, or alarms.
- Capillary Length: 2000mm (78.7 in) capillary allows for flexible sensor placement away from the control housing.
- Vapor Charge: Faster response time compared to standard liquid-filled sensors in high-heat scenarios.
- Enclosure: Compact IP30/IP44 rated housing built for industrial longevity.
Is the Danfoss KP81 compatible with low-voltage control circuits?
Yes, while the Danfoss 060L202366 is rated for line voltage (up to 400V), the internal silver contacts perform reliably in 24V control loops typically found in commercial burner circuits.
What is the difference between vapor charge and adsorption charge in these controls?
This model utilizes a vapor charge, which ensures the highest pressure is always at the sensor bulb. This prevents the control from being influenced by ambient temperature fluctuations around the capillary or bellows.
How do I adjust the differential on a manual reset model?
On a manual reset high-limit controller like the KP81, the differential is fixed. The system will only allow a manual reset once the temperature drops below the fixed differential value (typically around 12-15°F).
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
