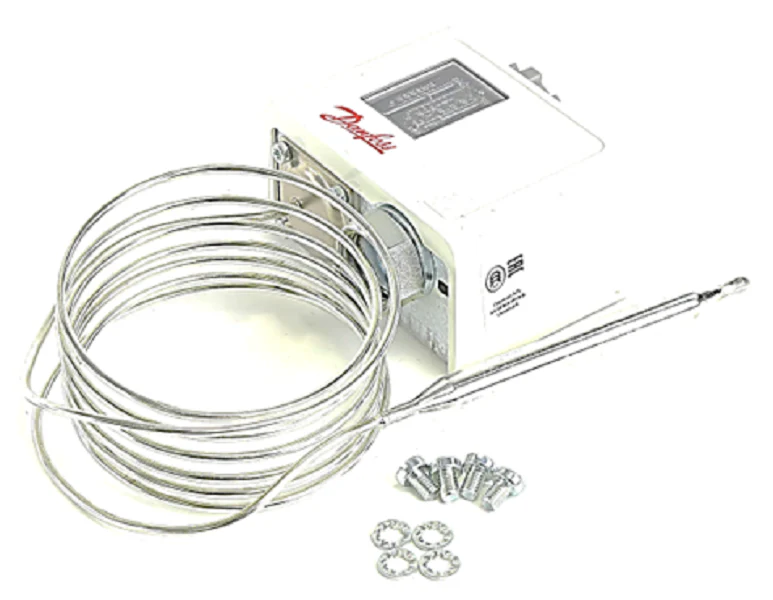

Danfoss 060L201066 Control
The Danfoss 060L201066 is a heavy-duty KP71 temperature control designed for precise regulation in commercial refrigeration and HVAC systems. Built for the rigors of the field, this mechanical thermostat features a Single Pole Double Throw (SPDT) snap-action switch, allowing for versatile wiring as either a high-limit or low-limit cutout. With an adjustable temperature range of 20°F to 60°F and an auto-reset function, it provides reliable frost protection and cycling for refrigeration compressors and air handling units.
The unit is equipped with a remote bulb sensor and an 80-inch capillary tube, offering extensive flexibility for sensor placement in walk-in coolers, cold rooms, or ductwork. This Danfoss KP series control is rated for high electrical loads, capable of handling up to 16A at 120V AC, and features a 1/2-inch NPSM swivel cable connector for streamlined conduit attachment. Its compact NEMA 1 enclosure and vibration-resistant bellows ensure long-term stability even in demanding mechanical rooms.
Key Benefits- Versatile SPDT Contacts: Enables both cooling control and alarm signaling from a single device.
- Extended 80" Capillary: Long capillary tube sensor allows for remote monitoring of evaporator coils or ambient air.
- Adjustable Differential: Allows technicians to fine-tune the cut-in and cut-out points to prevent short-cycling.
- Snap-Action Switch: Minimizes contact bounce and arcing, extending the service life of internal components.
- Robust Field Mounting: Features a standard mounting bracket and front-facing electrical terminals for easy access.
Is the Danfoss 060L201066 suitable for direct motor control?
Yes, the SPDT changeover switch can directly handle single-phase AC motors up to approximately 2 HP, or it can be wired into the control circuit of larger contactors.
What is the difference between the range and differential settings on this unit?
The range scale sets the upper activating temperature (cut-in), while the adjustable differential determines the temperature drop required before the switch resets to its original position.
Can this control be used in outdoor condensing units?
While the internal mechanism is highly durable, the standard KP71 has an IP30 enclosure rating. For outdoor or washdown environments, it should be installed within a secondary weather-proof housing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
