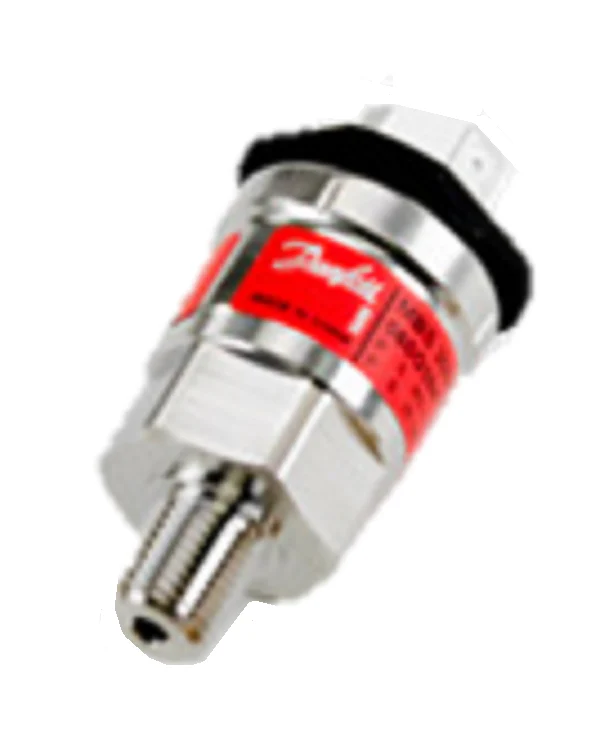

Danfoss 060G3947 Pressure Transmitter
The Danfoss 060G3947 MBS 3000 Pressure Transmitter is a precision-engineered current output sensor designed to provide reliable pressure measurement in demanding industrial and hydraulic applications. Part of the robust MBS 3000 series, this model is factory-calibrated for a pressure range of 0 to 25 bar (0 to 362.5 psi) with a sealed gauge reference. It utilizes an industry-standard 4-20 mA output signal, ensuring high immunity to electrical noise over long cable runs. Built with a 1/4" NPT connection and an acid-resistant stainless steel (AISI 316L) housing, it is fully compatible with air, water, and hydraulic fluids. The integrated pulse-snubber effectively protects the internal sensing element against pressure peaks and liquid hammer, while the 4-pin angular EN 175301-803-A electrical connector provides a secure, vibration-resistant interface. With a typical accuracy of 0.5% FS and IP65 enclosure rating, this transmitter is built for long-term stability in HVACR and process control environments.
- Engineered for Durability: Constructed with AISI 316L stainless steel wetted parts, providing superior corrosion resistance in diverse industrial environments.
- High Overload Protection: Rated for overload pressure up to 2176 psi (150 bar), preventing failure during system surges or liquid hammer events.
- EMI/EMC Compatibility: Features a high degree of electromagnetic compatibility, ensuring stable 4-20mA signal integrity even near heavy machinery.
- Broad Temperature Range: Effectively operates in ambient temperatures from -40°F to 185°F, making it suitable for unconditioned mechanical rooms and refrigeration systems.
- Fast Response Times: Optimized for dynamic systems with a response time of ? 4 ms, allowing for real-time pressure monitoring and control.
What is the difference between gauge and sealed gauge for the 060G3947?
This model uses a sealed gauge reference, meaning the internal sensor is sealed from the atmosphere. This prevents moisture ingress and ensures the MBS 3000 transmitter maintains accurate pressure measurement in high-humidity or submerged environments.
Is this transmitter compatible with refrigerants?
Yes, the stainless steel construction and MBS 3000 design are compatible with many common refrigerants. However, always verify chemical compatibility with AISI 316L for specific specialized media before installation.
Can I use a 24V DC power supply?
Correct. The 060G3947 operates on a wide supply voltage range of 9 to 32 VDC, making it standard for use with most PLC and DDC control systems.
California Proposition 65 Warning:
?? WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $503.75
-65%$503.75
$176.31Danfoss 060G3947 Pressure Transmitter
