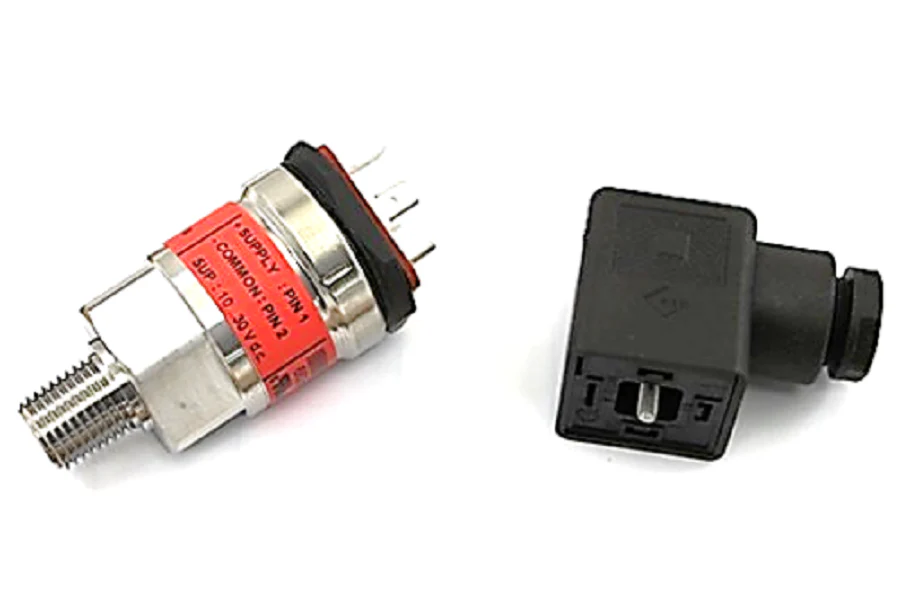

Danfoss 060G1144 Transmitter
The Danfoss 060G1144 MBS 3000 Pressure Transmitter is a field-proven solution designed for heavy-duty industrial and HVACR applications. Engineered for precision and long-term stability, this 4-20mA pressure transducer features a measuring range of 0-300 psi (0-20.7 bar) with a standard 1/4-18 NPT pressure connection. Built to withstand harsh environments, the unit is housed in acid-resistant AISI 316L stainless steel and offers superior protection against electromagnetic interference (EMC/EMI). Utilizing a 10-30V DC supply voltage, it provides an accurate linear signal essential for PLC and electronic controller integration. Whether monitoring discharge pressure in compressors or fluid levels in pumping systems, the MBS 3000 series ensures reliable data without the risk of signal drift. Its compact design facilitates installation in tight mechanical rooms, while the DIN 43650-A angular connector provides a secure, vibration-resistant electrical termination for critical automation tasks.
Key Benefits- Corrosion Resistance: Fully laser-welded stainless steel construction protects wetted parts and the housing from aggressive media.
- Exceptional Accuracy: Maintains a ±0.5% FS typical accuracy to ensure precise system regulation and efficiency.
- Vibration Stability: High resistance to mechanical shock and vibration makes it ideal for direct mounting on high-output compressors.
- Temperature Compansion: Delivers stable measurement across a wide operating range from -40°F to 185°F.
- Industry Compliance: Meets stringent ATEX and CE requirements for use in diverse industrial environments.
What is the pinout for the 4-20mA output on this transmitter?
Standard wiring for the 060G1144 uses Pin 1 for the positive supply (+) and Pin 2 for the output signal (-/common), typically via a Pg 9 angular connector.
Can this sensor handle pressure spikes and liquid hammer?
While the MBS 3000 is highly robust, for applications with severe cavitation or liquid hammer, technicians often recommend the MBS 3050 variant with an integrated pulse snubber. However, the standard 3000 series is rated for a 1800 psi maximum overload pressure.
Is this compatible with 12V DC systems?
Yes, the internal electronics are designed to operate on a wide 10V to 30V DC supply, making it compatible with both 12V and 24V control circuits common in HVACR panels.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $553.24
-65%$553.24
$193.63Danfoss 060G1144 Transmitter
The Danfoss 060G1144 MBS 3000 Pressure Transmitter is a field-proven solution designed for heavy-duty industrial and HVACR applications. Engineered for precision and long-term stability, this 4-20mA pressure transducer features a measuring range of 0-300 psi (0-20.7 bar) with a standard 1/4-18 NPT pressure connection. Built to withstand harsh environments, the unit is housed in acid-resistant AISI 316L stainless steel and offers superior protection against electromagnetic interference (EMC/EMI). Utilizing a 10-30V DC supply voltage, it provides an accurate linear signal essential for PLC and electronic controller integration. Whether monitoring discharge pressure in compressors or fluid levels in pumping systems, the MBS 3000 series ensures reliable data without the risk of signal drift. Its compact design facilitates installation in tight mechanical rooms, while the DIN 43650-A angular connector provides a secure, vibration-resistant electrical termination for critical automation tasks.
Key Benefits- Corrosion Resistance: Fully laser-welded stainless steel construction protects wetted parts and the housing from aggressive media.
- Exceptional Accuracy: Maintains a ±0.5% FS typical accuracy to ensure precise system regulation and efficiency.
- Vibration Stability: High resistance to mechanical shock and vibration makes it ideal for direct mounting on high-output compressors.
- Temperature Compansion: Delivers stable measurement across a wide operating range from -40°F to 185°F.
- Industry Compliance: Meets stringent ATEX and CE requirements for use in diverse industrial environments.
What is the pinout for the 4-20mA output on this transmitter?
Standard wiring for the 060G1144 uses Pin 1 for the positive supply (+) and Pin 2 for the output signal (-/common), typically via a Pg 9 angular connector.
Can this sensor handle pressure spikes and liquid hammer?
While the MBS 3000 is highly robust, for applications with severe cavitation or liquid hammer, technicians often recommend the MBS 3050 variant with an integrated pulse snubber. However, the standard 3000 series is rated for a 1800 psi maximum overload pressure.
Is this compatible with 12V DC systems?
Yes, the internal electronics are designed to operate on a wide 10V to 30V DC supply, making it compatible with both 12V and 24V control circuits common in HVACR panels.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
