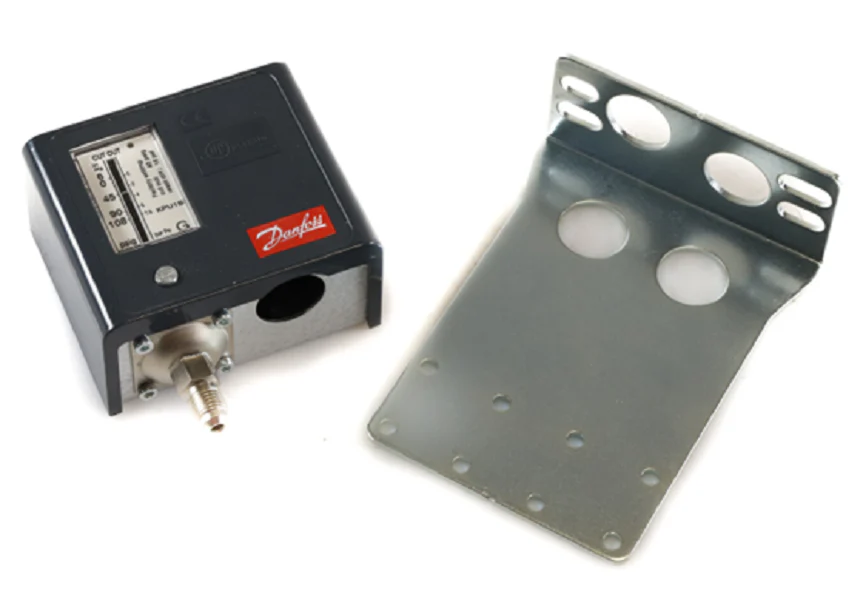

Danfoss 060-5270 Control
The Danfoss 060-5270 is a heavy-duty low pressure control designed for precise regulation and safety cut-out in commercial refrigeration and HVAC systems. As part of the respected KP series, this Danfoss KP1 pressure switch offers a robust sensing range from 6 inches of vacuum up to 108 PSI, making it a versatile solution for suction pressure monitoring. The SPDT switch configuration allows for flexible wiring as either a high or low-limit control, ensuring the compressor or condenser fans cycle according to exact system demands. This specific model features a manual reset mechanism, providing an essential safety barrier by requiring a technician to inspect the system before restarting after a low-pressure trip. Built with 1/4 inch male flare connections and a high-current 24A contact rating, it serves as a reliable refrigeration pressure control for contractors seeking to replace aging or failed components like the P70KA33. The vibration-resistant snap-action contacts minimize bounce, extending the life of the HVAC pressure switch significantly.
Key Benefits:- Precise System Protection: Monitors suction lines across a wide range (6" Vac to 108 PSI) to prevent compressor damage during loss of charge.
- Fail-Safe Manual Reset: Ensures system issues are diagnosed by a professional before operation resumes, a critical safety feature for commercial equipment.
- Multi-Functional SPDT Contacts: Provides the versatility to handle load-breaking or alarm-signaling tasks with a single low pressure cutoff.
- Field-Proven Durability: Rated for over 400,000 cycles with minimal setpoint drift, even in high-vibration mechanical rooms.
- Universal Compatibility: Standard 1/4" MFL connection and compact footprint allow for seamless integration into most refrigeration racks and condensing units.
- What is the difference between manual and automatic reset on this switch? The 060-5270 requires a manual press of the reset button once pressure returns to safe levels, whereas auto-reset models restart once the differential is met without technician intervention.
- Can this control be used with high-pressure refrigerants? This switch is designed for the low-pressure side of the system. Always verify your maximum working pressure (MWP) does not exceed 245 psig for the bellows' safety.
- What does the SPDT contact allow me to do? The Single Pole Double Throw (SPDT) design means you can use Terminal 1-4 for a standard break-on-drop refrigeration circuit or use the auxiliary terminal to trigger a remote alarm when the switch trips.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
